Flowline manufacture a range of controllers and indicators to suit general purpose, intrinsically safe or explosion proof 1 installation requirements.

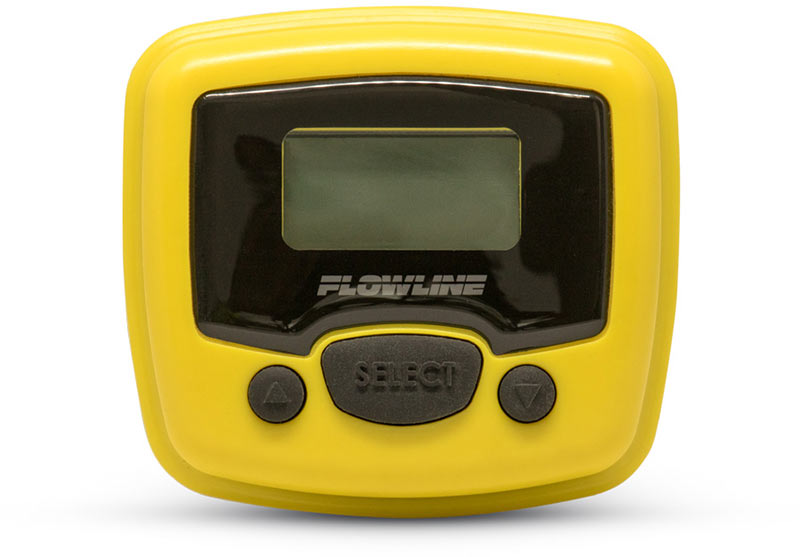

For general purpose installations the Flowline DataView LI55 level controller provides display and control capabilities via a 6-digit LED. For installations utilising a Flowline EchoPod Ultrasonic Level Transmitter, the Flowline LI40 can provide level indication with simple installation.
For intrinsically safe applications utilising a Flowline Level Transmitter with a 4-20mA output, choose the Flowline DataLoop LI25.
Complete your Flowline level measurement solution with a panel or field mount relay controller or indicator.
1 For more information about the Flowline DataKeep 300500 Explosion Proof Indicator, contact us.
Flowline DataView LI55 Level Controller
The Flowline Dataview LI55 is a general purpose AC-powered level controller which displays engineering units with one 4-20 mA level transmitter input and is offered in three configurations with optional 2 or 4 programmable relays, and an isolated 4-20 mA repeater. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve) or duplex (two pumps) level control modes.
|Enclosure||NEMA 4 faceplate|
