Flowline guided wave radar level transmitters are your contact level measurement solution for small to medium size tank applications with challenging process conditions. Guided wave radar is unaffected by most process conditions that cause other sensing technologies to fail or require ongoing maintenance. These include foam, vapor, condensation, temperature, pressure, vacuum, and light coating or scaling liquids.
How do Flowline Guided Wave Radar Level Transmitters work?
Flowline guided wave radar level sensors emit a RF pulse from the base of the probe. The pulse travels down the probe, reflects against the liquid dielectric material and returns to the probe. The sensor measures the pulse time of flight and translates this into liquid level height.

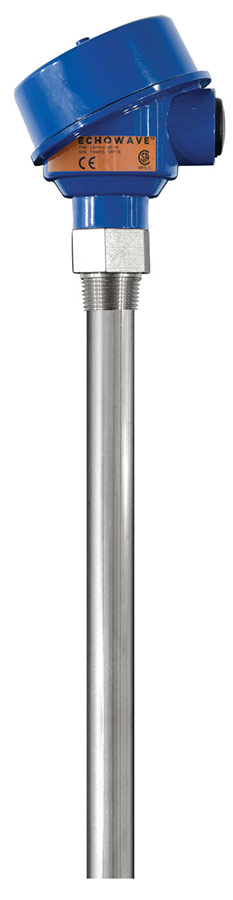

Flowline EchoWave LG10-0
The Flowline Echowave LG10-0 is a general purpose guided wave level transmitter which provides continuous level measurement up to 3m with a 4-20 mA signal output, and is configured via the free Flowline WebCal software.
The LG10-0 liquid level sensor comes with a rod probe type and is suitable in non-turbulent environments with foam, vapour, condensation, temperature or pressure.
Select the EchoWave LG10-0 for use with clean, dirty, coating or crystallising liquids in above grade metal or below grade tanks of any material. Standard probe lengths may be user cut in the field. Typical applications include day tanks, skids or machines, IBCs or drums, process tanks and waste sumps.
|Output||4-20 mA, 3-wire|
|Mount||0.75inch NPT, 0.75inch BSP|
