The Flowline EchoPro range is comprised of intrinsically safe pulse radar level transmitters for hazardous liquid and dry solid applications. These CSA, ATEX and IEC approved level sensors feature HART digital communication and are compatible for optional configuration via via the Flowline WebCal software.
How do Flowline Pulse Radar Level Transmitters work?
A Flowline pulse radar level transmitter emits a 26 GHz or 6.3 GHz RF pulse from the base of the antenna. The pulse travels through the free space, reflects against the liquid dielectric material and returns to the antenna. The sensor then measures the pulse time of flight and translates this into liquid level distance.

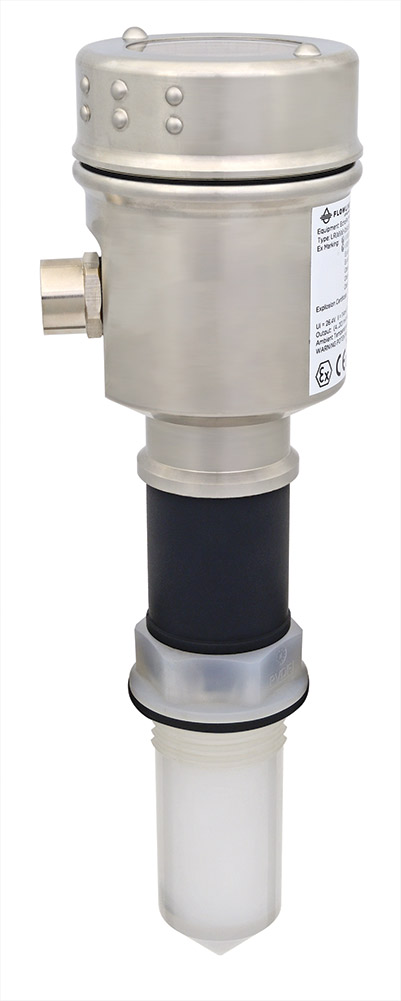

Flowline EchoPro LR11
The EchoPro LR11 is an intrinsically safe 26 GHz. pulse radar level transmitter which provides continuous level measurement up to 10m with a 4-20 mA analog and HART digital signal output. It is configured via its integral push button display module or the free Flowline WebCal software.
This non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy process conditions with corrosive media, light agitation, condensation or vapour, and installation in a low-profile tank adapter or flange fitting. Typical applications include chemical bulk storage and tanker trucks.
|Range||30cm to 10m|
|Output||4-20 mA, two-wire, HART 7.0|
