Flowline Pulse Radar Level Sensors are the non-contact level measurement solution for the most demanding storage, process or lift station applications. Pulse radar technology is unaffected by process conditions that cause other sensing technologies to fail or require ongoing maintenance. These include foam, vapor, condensation, corrosion, temperature, pressure, vacuum, and coating or scaling liquids.
How do Flowline Pulse Radar Level Transmitters work?
A Flowline pulse radar level transmitter emits a 26 GHz or 6.3 GHz RF pulse from the base of the antenna. The pulse travels through the free space, reflects against the liquid dielectric material and returns to the antenna. The sensor then measures the pulse time of flight and translates this into liquid level distance.

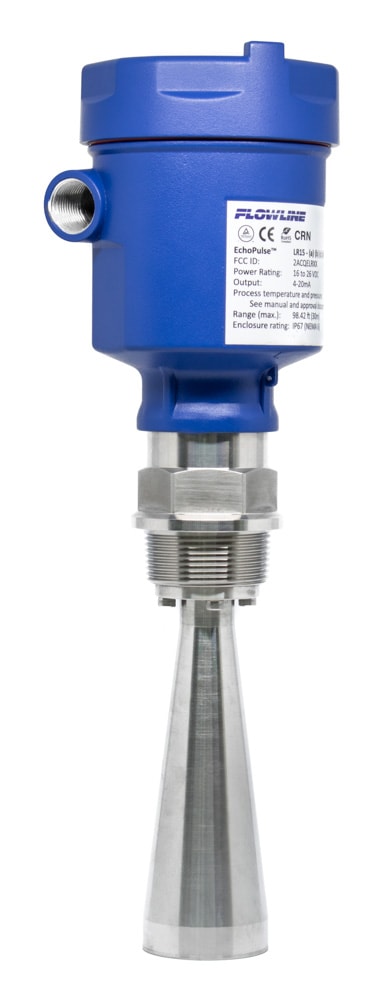

Flowline EchoPulse LR10
The EchoPulse LR10 is a general purpose 26 GHz. pulse radar level transmitter which provides continuous level measurement up to 10m with a 4-20 mA signal output, and is configured via its integral push button display module.
This non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy application conditions with corrosive media, light agitation, condensation or vapour, and installation in a low-profile tank adapter or flange fitting.
|Range||30cm to 10m|
|Output||4-20 mA, two-wire|
