Flowline Ultrasonic level transmitters are unaffected by liquid characteristics that cause contact sensing technologies to fail or require ongoing maintenance—these include corrosive, dirty, coating or scaling liquids. If you have an ambient application and require non-contact level measurement, then you want ultrasonic.
How do Flowline Ultrasonic Level Transmitters work?
A Flowline Ultrasonic level sensor emits a sonic pulse from the base of the transducer. The pulse travels through the air gap, reflects against the liquid surface and returns to the transducer. The sensor then measures the pulse time-of-flight and translates this into the liquid level height.

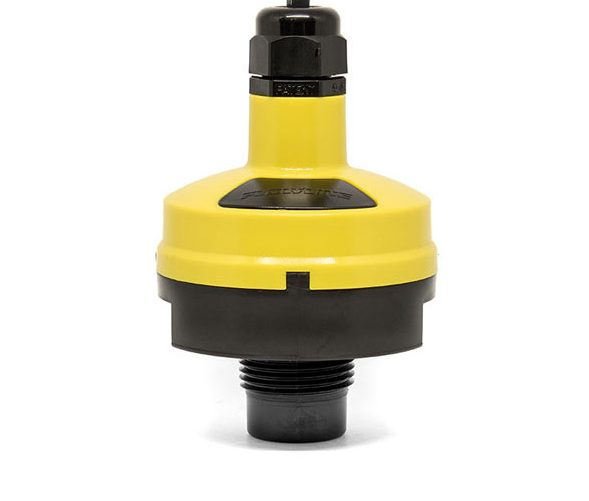

Flowline Echopod DL10
The DL10 is a general purpose ultrasonic level transmitter which provides continuous level measurement up to 1.25m with a 4-20 mA signal output, and is configured via the Flowline WebCal software. Select this sensor for small tanks with non-foaming, non-condensing or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include chemical feed, skid or machine, IBC or drum and small waste sumps.
|Range||5cm to 1.25m|
