CPVC Schedule 80 Pipe & Fittings

Post-Chlorinated Polyvinyl Chloride
Post Chlorinated Polyvinyl Chloride (CPVC) is a pressure piping system superior in temperature rating and chemical resistance to Unplasticised Polyvinyl Chloride (UPVC).

It offers increased chemical resistance in applications where steel or fibreglass reinforced products are commonly used and often at a reduced cost.

Its smooth internal surface ensures limited build up of materials / scale from conveyed fluids during operations.

CPVC is widely used for water treatment, chemical processing and other similar industries / processes.

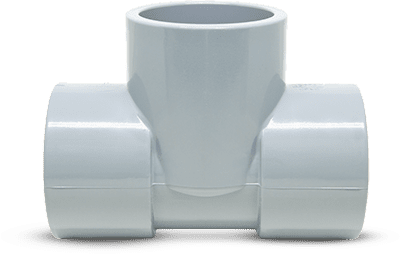

Charlotte Nibco CPVC Schedule 80 Tee
Size Range
0.5 – 16 inch
Operating Temperature
0 – 80°C
Jointing Technology
Solvent cement
Pressure Rating
Up to 16 bar (1600 kpa)

A Sample Of Our Range

CPVC Elbow 90 Socket Ends Charlotte
Elbow 90˚ with socket ends
CPVC Elbow 90 Threaded Ends Charlotte
Elbow 90˚ with threaded ends
CPVC Reducing Bush Charlotte
Reducing Bush
CPVC Tee 90 from Charlotte
Tee 90˚
CPVC Threaded Adaptor Charlotte
Threaded Adaptor
See Our Full Range

For the full range available from Fusion download the Fusion Product Guide or Contact us.

Get the Product Guide

Benefits of CPVC

  • Suitable for highly corrosive materials.
  • High temperature rating.
  • High pressure rating.
  • UV Resistant / Stabilised.
  • It's light weight and easy to handle. Reducing the cost of transportation and installation.
  • Easy to install with inexpensive tools and cleaner / glue.
  • High burning resistance / self-extinguishing.

Fusion: Australian Distributor for Charlotte Pipe Co.

Charlotte Pipe has been relentless in their commitment to quality and service for more than a century. They are a leading full-line manufacturer of UPVC, CPVC, and ABS piping systems for drainage and pressure applications. Charlotte’s systems are designed to fit together precisely for easier installation, fewer callbacks and a lifetime of trouble-free service.

Standards Compliance

CPVC Schedule 80 Pipe
  • ASTM D1784: Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
  • ASTM F441: Standard Specification for Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Pipe, Schedules 40 and 80
More information about the standards compliance of Charlotte Pipe Co CPVC Corzan Schedule 80 Pipe can be found in The Charlotte Technical Manual downloadable from the Charlotte Website.
CPVC Schedule 80 Fittings
  • ASTM D1784: Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
  • ASTM F437: Standard Specification for Threaded Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Pipe Fittings, Schedule 80
  • ASTM F439: Standard Specification for Chlorinated Poly (Vinyl Chloride) (CPVC) Plastic Pipe Fittings, Schedule 80
More information about the standards compliance of Charlotte Pipe Co CPVC Corzan Schedule 80 fittings can be found in The Charlotte Technical Manual downloadable from the Charlotte Website.

FAQ

Which range of CPVC does Fusion Stock?

We carry stock of CPVC Schedule 80 pipe, fittings, solvent cements, primers and pipe clips to help with installation.

What is Schedule 80?

A pipe’s “Schedule” is simply a reference to its wall thickness. A 2 inch schedule 80 pipe will have a smaller internal diameter than a 2 inch schedule 40 pipe. Therefore, the higher the schedule, the thicker the wall. The “Schedule” classification of pipe is used not only for PVC but also with other materials such as steel.

Why choose CPVC Schedule 80?

Schedule 80’s thick wall allows for pressure loads and suitability to harsh environments, making it commonly used in heavy duty commercial or industrial applications.

Where has Fusion Supplied / Installed CPVC Schedule 80?

For hundreds of business across Australia. Some notable supply / install projects:

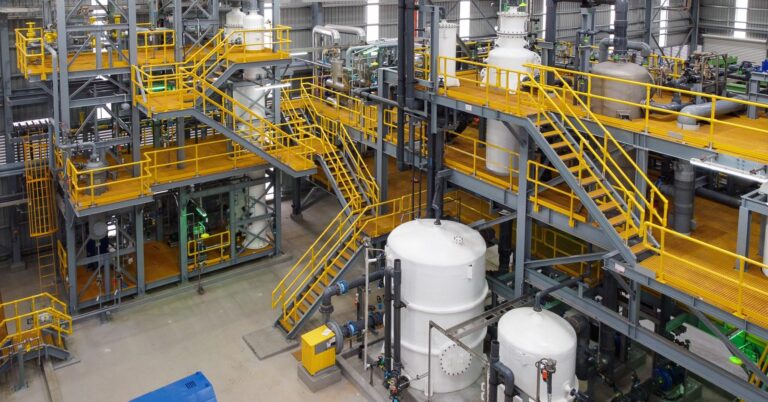

  • A chlor-alkali plant construction in Brisbane, Queensland.
  • Many mine site projects throughout the Pilbara Region in Western Australia.
  • Multiple water authority plants throughout Western Australia, Queensland and South Australia.
  • A chemical processing plant in Perth, Western Australia.

Interested in CPVC for your next project?
