UPVC Schedule 80 Pipe & Fittings

Unplasticised Polyvinyl Chloride

UPVC Schedule 80 Pipe & Fittings

Unplasticised Polyvinyl Chloride
UPVC Schedule 80 pipe and fittings also commonly referred to as PVC, uPVC, PVCU or PVC-U is a highly regarded pressure piping system that is suitable for use within the water treatment, chemical processing and similar industries.

UPVC Schedule 80 is an extremely versatile product that has uses ranging from drinking water to highly corrosive chemical applications. The product contains UV stabilising additives and thermal properties which ensure that it is suitable for both interior and exterior environments. Its smooth texture also ensures that there is limited build up of materials or scale from the liquids during operations.

The product is lightweight (compared to metallic systems) and easy to handle and install.

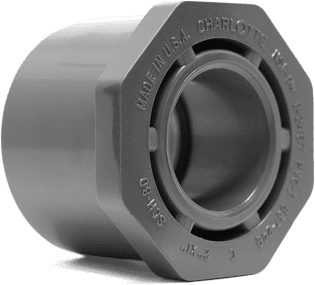

Charlotte UPVC Reducing Bush
Size Range
0.25 – 16 inch
Operating Temperature
0 - 60°C
Jointing Technology
Solvent Cement
Pressure Rating
Up to 16 bar (1600 kpa)

Our UPVC Schedule 80 Range

Product photo of a UPVC Schedule 80 Pipe on a white background
Diagram of pipe

Pipe
Schedule 80

A high-strength uPVC pressure pipe manufactured to ASTM D1785 standards in imperial sizes. Featuring thicker walls than Schedule 40, it offers higher pressure ratings and increased mechanical strength. Supplied in plain-end lengths for solvent-weld joints, it is suitable for water, chemical, and industrial fluid handling systems.
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 1785: PVC Plastic Pipe, Schedule 80
  • NSF Standard 14: Plastic Piping Components & Related Materials
  • NSF Standard 61: Drinking Water System Components–Health Effects
  • Standard Length 5.8m
Code DN DN" ID OD Wall
800050PG2C 15 0.5" 13.9 21.3 3.7
800075PG2C 20 0.75" 18.9 26.7 3.9
800100PG2C 25 1" 24.4 33.4 4.5
800125PG2C 32 1.25" 32.6 42.2 4.8
800150PG2C 40 1.5" 38.3 48.3 5
800200PG2C 50 2" 49.3 60.3 5.5
800250PG2C 65 2.5" 59 73 7
800300PG2C 80 3" 73.7 88.9 7.6
800400PG2C 100 4" 97.3 114.3 8.5
800600PG2C 150 6" 146.5 168.3 10.9
800800PG2C 200 8" 193.6 219 12.7
801000PG2C 250 10" 242.9 273.1 15.1
801200PG2C 300 12" 289.1 323.9 17.4
801400PG2C 350 14" 317.4 355.6 19.1
801600PG2C 400 16" 363.6 406.4 21.4

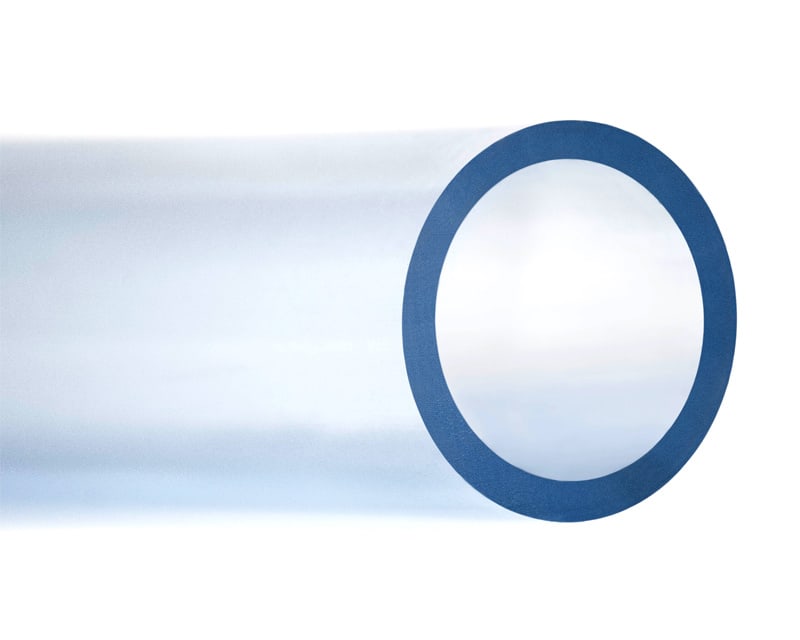

Product photo of the end of a clear UPVC Schedule 40 pipe length on a white background
Diagram of pipe

Clear Pipe
Schedule 40

A transparent uPVC pressure pipe manufactured to schedule 40 imperial sizes. With Schedule 40 wall thickness, it provides reliable performance for lower-pressure applications while allowing full visual inspection of flow and contents. Supplied in plain-end lengths for solvent-weld joints, it is ideal for laboratories, chemical dosing, aquariums, and process systems where visibility is essential.
  • ASTM D 1784: Rigid Vinyl Compounds (Cell Classification 16443)
  • NSF Standard 61: Drinking Water System Components–Health Effects
  • Standard Length 3m
Code DN DN" ID OD Wall
200060180 15 0.5" 15.3 21.4 2.8
200060181 20 0.75" 20.5 26.7 2.9
200060182 25 1" 26.2 33.5 3.4
200060183 32 1.25" 34.6 42.2 3.6
200060184 40 1.5" 40.4 48.3 3.7
200060185 50 2" 52 60.4 4
200060187 80 3" 77.3 88.9 5.5
200060188 100 4" 101.6 114.3 6.1
200060189 150 6" 153.2 168.3 7.2

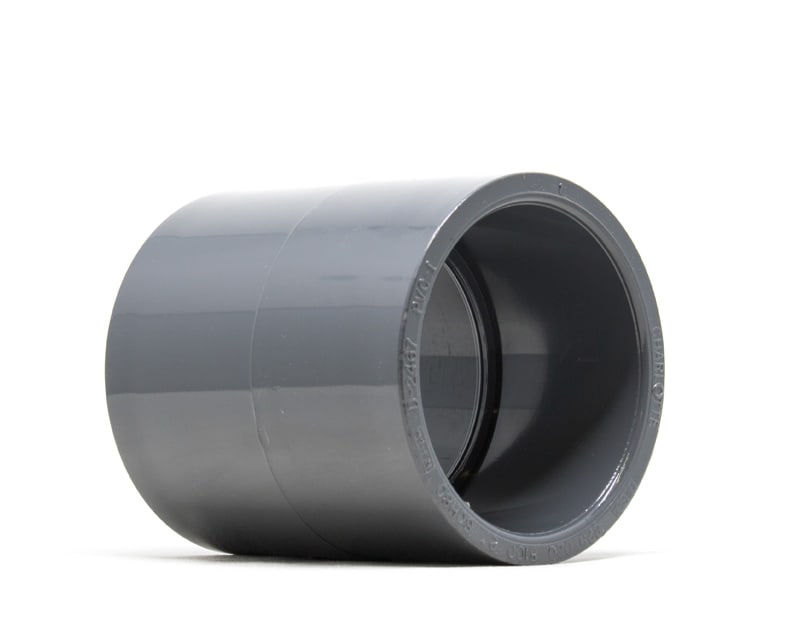

product photo of a UPVC Schedule 80 equal coupling on a white background
Diagram of a UPVC Schedule 80 Equal Coupling

Coupling
Equal Sockets

A uPVC Schedule 80 coupling with solvent-weld socket ends. Designed for joining two pipes of the same nominal size, its thick-wall construction provides high pressure resistance and durability. Suitable for water, chemical, and industrial fluid handling systems.
Code DN DN" L N
829005C 15 0.5" 50 4
829007C 20 0.75" 56 4
829010C 25 1" 62 4
829012C 32 1.25" 69 4
829015C 40 1.5" 75 4
829020C 50 2" 81 4
829025C 65 2.5" 96 5
829030C 80 3" 102 5
829040C 100 4" 121 5
829060C 150 6" 160 7
829080C 200 8" 210 7
829100 250 10" - -
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61

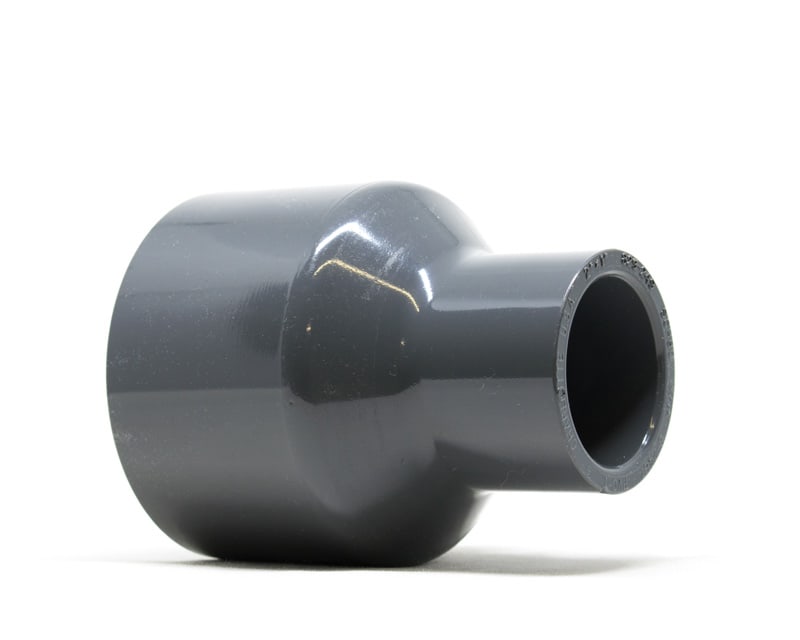

product photo of a UPVC Schedule 80 reducing socket on a white background
diagram of a UPVC Schedule 80 reducing coupling

Coupling
Reducing Sockets

A uPVC Schedule 80 reducing coupling with solvent-weld socket ends. Designed to join pipes of different nominal sizes, its heavy-wall construction ensures high pressure resistance and long service life.
Code DN DN" L N
829101C 20 x 15 0.75" x 0.5" 56 7
829130C 25 x 15 1" x 0.5" 61 8
829131C 25 x 20 1" x 0.75" 62 7
829168C 32 x 25 1.25" x 1" 70 8
829211C 40 x 25 1.5" x 1" 74 8
829212C 40 x 32 1.5" x 1.25" 75 7
829249C 50 x 25 2" x 1" 89 10
829251C 50 x 40 2" x 1.5" 81 23
829338C 80 x 50 3" x 2" 105 20
829420C 100 x 50 4" x 2" 131 34
829422C 100 x 80 4" x 3" 131 34
829532C 150 x 100 6" x 4" 169 35
829585 200 x 150 8" x 6" - -
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
product photo of a 90 degree UPVC schedule 80 Elbow on a white background
Diagram of a UPVC Schedule 80 90 degree Elbow

Elbow 90°
Socket Ends

A uPVC Schedule 80 elbow with solvent-weld socket ends. Designed to create a 90-degree change of direction in piping systems, its thick-wall construction provides superior strength and pressure resistance.
Code DN DN" H G
806005C 15 0.5" 38 16
806007C 20 0.75" 43 18
806010C 25 1" 51 22
806012C 32 1.25" 58 25
806015C 40 1.5" 62 27
806020C 50 2" 73 34
806025C 65 2.5" 88 43
806030C 80 3" 96 47
806040C 100 4" 120 62
806060C 150 6" 170 94
806080C 200 8" 219 117
806100 250 10" - -
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
product photo of a 90 degree UPVC schedule 80 Elbow on a white background
Diagram of a UPVC Elbow 90 Degrees socket x F-NPT

Elbow 90°
Socket x F-NPT

A uPVC Schedule 80 elbow with solvent-weld socket end and a female NPT threaded end. Designed to create a 90-degree change of direction in piping systems, its thick-wall construction provides superior strength and pressure resistance.
Code DN DN" H G H1 G1
807005C 15 0.5" 35 13 36 18
807007C 20 0.75" 43 16 42 21
807010C 25 1" 47 19 46 22
807012C 32 1.25" 58 32 51 26
807015C 40 1.5" 61 26 54 27
807020C 50 2" 70 51 62 37
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • ASTM D-2464: PVC Threaded Fittings, Schedule 80
  • NSF Standard 14 & 61

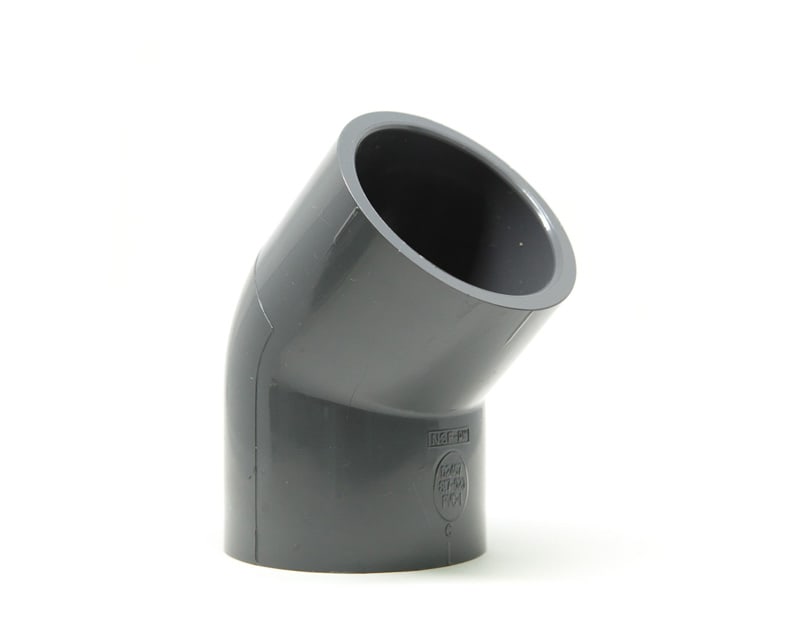

Product photo of a 45° Schedule 80 Elbow in UPVC with socket ends on a white background

Elbow 45°
Socket Ends

A uPVC Schedule 80 elbow designed to create a smooth 45-degree change of direction in piping systems, its thick-wall construction ensures excellent strength and high pressure resistance.
Code DN DN" H J
817005C 15 0.5" 30 7
817007C 20 0.75" 35 8
817010C 25 1" 38 8
817012C 32 1.25" 43 11
817015C 40 1.5" 48 13
817020C 50 2" 55 17
817025C 65 2.5" 64 19
817030C 80 3" 69 20
817040C 100 4" 91 33
817060C 150 6" 127 51
817080C 200 8" 159 58
817100 250 10" - -
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61

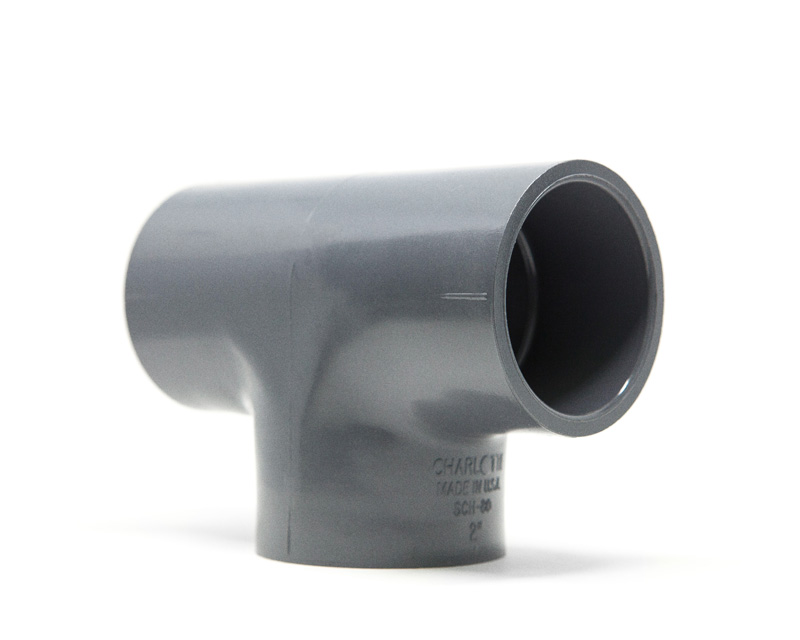

Product photo of a Schedule 80 UPVC Equal Tee with Socket ends on a white background
diagram of a Schedule 80 UPVC Equal Tee with Socket ends

Tee 90° Equal
Socket Ends

A uPVC Schedule 80 equal tee with solvent-weld socket ends. Designed to create a 90-degree branch of equal size from the main pipeline,
Code DN DN" L H G
801005C 15 0.5" 75 38 16
801007C 20 0.75" 88 44 18
801010C 25 1" 102 51 22
801012C 32 1.25" 116 58 26
801015C 40 1.5" 124 62 27
801020C 50 2" 147 74 34
801025C 65 2.5" 177 89 43
801030C 80 3" 191 96 47
801040C 100 4" 239 120 62
801060C 150 6" 359 180 103
801080C 200 8" 447 224 121
801100 250 10" - - -
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
Product photo of a Schedule 80 UPVC Equal Tee with Socket ends on a white background
Diagram of a Schedule 80 UPVC Equal Tee with a socket ended line and a F-NPT threaded branch

Tee 90° Equal
Socket Line x F-NPT Branch

A uPVC Schedule 80 equal tee with solvent-weld socket ends. Designed to create a 90-degree branch of equal size from the main pipeline.
Code DN DN" L H G H1 G1
802005C 15 0.5" 72 36 14 35 16
802007C 20 0.75" 81 43 17 39 20
802010C 25 1" 94 47 19 47 21
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • ASTM D-2464: PVC Threaded Fittings, Schedule 80
  • NSF Standard 14 & 61

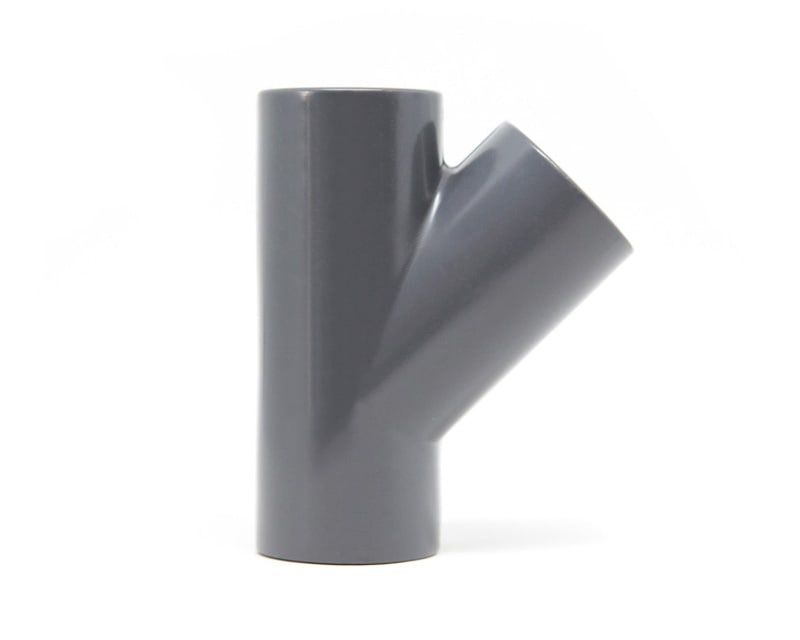

Product photo of a 45° Schedule 80 Equal Tee with socket ends on a white background

Tee 45° Equal
Socket Ends

A uPVC Schedule 80 45-degree tee, also known as a wye, with solvent-weld socket ends. It creates a 45-degree branch connection for smoother flow transitions compared to a 90-degree tee.
Code DN DN" L J H
875020C 50 2" 99 17 82
875030C 80 3" 126 18 167
875040C 100 4" 158 21 137
875060C 150 6" 239 36 203
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61

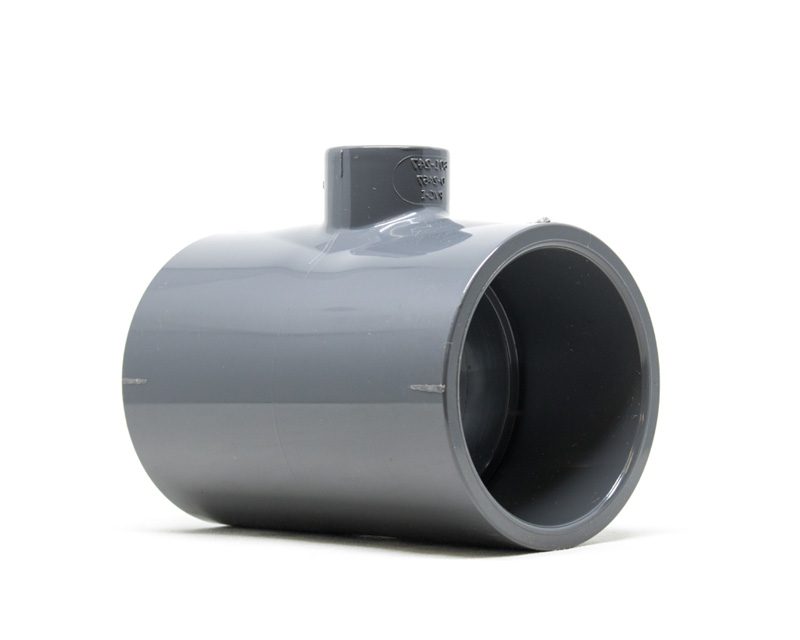

Product photo of a schedule 80 reducing tee in UPVC with socket ends on a white background
diagram of a schedule 80 reducing tee in UPVC with socket ends

Tee 90° Reducing
Socket Ends

A uPVC Schedule 80 reducing tee with socket ends. Designed to create a 90-degree branch connection with a reduced outlet size, it allows efficient changes in pipe diameter within a system.
Code DN DN" L H G H1 G1
801101C 20 x 15 0.75 x 0.5 81 41 15 43 20
801130C 25 x 15 1 x 0.5 89 45 16 41 18
801131C 25 x 20 1 x 0.75 93 47 18 47 22
801168C 32 x 25 1.25 x 1 58 54 23 53 24
801210C 40 x 20 1.5 x 0.75 106 54 18 52 26
801211C 40 x 25 1.5 x 1 115 58 23 58 30
801212C 40 x 32 1.5 x 1.25 131 67 31 59 27
801247C 50 x 15 2 x 0.5 106 54 15 55 32
801248C 50 x 20 2 x 0.75 112 57 18 58 32
801249C 50 x 25 2 x 1 121 61 23 66 36
801251C 50 x 40 2 x 1.5 137 69 31 72 36
801338C 80 x 50 3 x 2 167 85 37 85 47
801420C 100 x 50 4 x 2 193 97 39 105 66
801422C 100 x 80 4 x 3 220 110 53 106 66
801528C 150 x 50 6 x 2 243 122 45 129 90
801532C 150 x 100 6 x 4 293 147 70 153 95
801585C 200 x 150 8 x 6 397 199 96 181 104
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
product photo of a UPVC schedule 80 Van Stone Flange with ANSI 150 bolt holes and a serrated face on a white background
diagram of a upvc schedule 80 van stone flange with serrated face

Van Stone Flange
Serrated Face ANSI 150 x Socket

A uPVC Schedule 80 Van Stone flange with a serrated ANSI 150 face and a solvent-weld socket end. Designed for secure flange-to-flange connections, the two-piece Van Stone style allows independent rotation of the flange ring for easier bolt alignment.
CodeDN

DN"

DLNTPCDEF
854015C401.5"1264031998164
854020C502"15044321120194
854025C652.5"17051424139194
854030C803"18954424152194
854040C1004"23067427190198
854060C1506"27982431241228
854080C2008"339110539298228
854100C25010"40714516433622512
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
  • E = Bolt Hole Diameter
  • F = Number of bolt holes

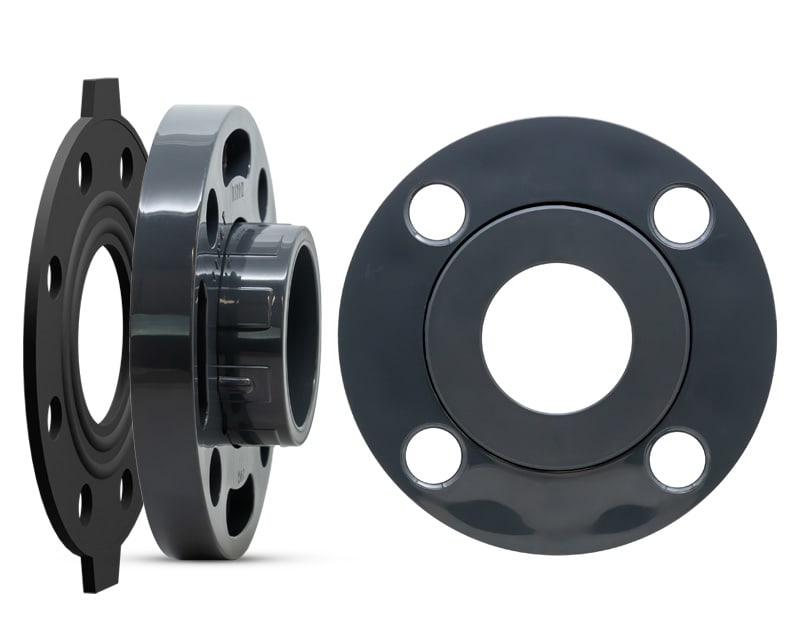

product photo of a UPVC Van Stone Flange with flat face and included ribbed gasket on a white background
Diagram of a UPVC Van Stone Flange with flat face and included ribbed gasket

Van Stone Flange
Flat Face ANSI 150 x Socket w Ribbed Gasket

A uPVC Schedule 80 Van Stone flange with a flat ANSI 150 face and solvent-weld socket end. Supplied complete with a ribbed EPDM gasket, this two-piece design allows the flange ring to rotate independently for easy bolt alignment.
CodeDNDN"DD1LNTPCDEF
1.2.20.050150.5"8939252.81160.5164
1.2.20.075200.75"9947294.11370164
1.2.20.100251"10856323.41479164
1.2.20.125321.25"11765386.71689164
1.2.20.150401.5"12774405.61798164
1.2.20.200502"15292434.420120194
1.2.20.250652.5"178108516.624139194
1.2.20.300803"191119555.127152194
1.2.20.4001004"229149645.228190198
1.2.20.6001506"283207855.532241228
1.2.20.8002008"3432631201236298228
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
  • E = Bolt Hole Diameter
  • F = Number of bolt holes

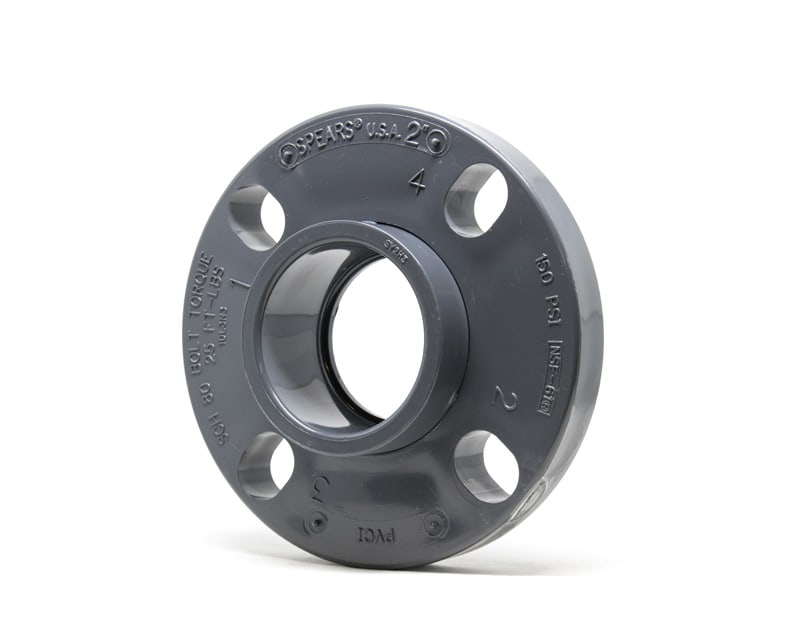

product photo of a multidrill van stone flange in UPVC schedule 80 on a white background

Van Stone Flange
Multidrill x Socket

A uPVC Schedule 80 Van Stone flange with a multidrilled face and solvent-weld socket end. The multidrill pattern allows compatibility with ANSI 150, as well as Table D and Table E drilling standards (note: not all sizes align with ANSI).
Code DN DN" F Drilling Pattern Hole Style
M854020 50 2" 4 D/E/ANSI Elongated
854030DE 80 3" 4 D/E Round
854040DE 100 4" 8 D/E Round
854060DE 150 6" 8 D/E/ANSI Round
854080DE 200 8" 8 D/E/ANSI Round
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
  • E = Bolt Hole Diameter
  • F = Number of bolt holes
product photo of a blind flange in UPVC with an ANSI150 drill pattern on a white background
diagram of a blind flange in UPVC with an ANSI150 drill pattern

Blind Flange
ANSI 150

A uPVC Schedule 80 blind flange with an ANSI 150 drilling pattern. Designed to terminate or isolate a pipeline, it provides a secure, pressure-rated seal for flanged systems.
Code DN DN" PCD D T E
853007 20 0.75" 70 99 12 13
853010 25 1" 80 108 15 13
853012 32 1.25" 89 118 15 13
853015 40 1.5" 99 127 19 13
853020C 50 2" 121 150 21 16
853030C 80 3" 153 189 24 16
853040C 100 4" 191 230 27 16
853060C 150 6" 242 281 32 20
853080C 200 8" 298 343 38 20
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
  • E = Bolt Hole Diameter

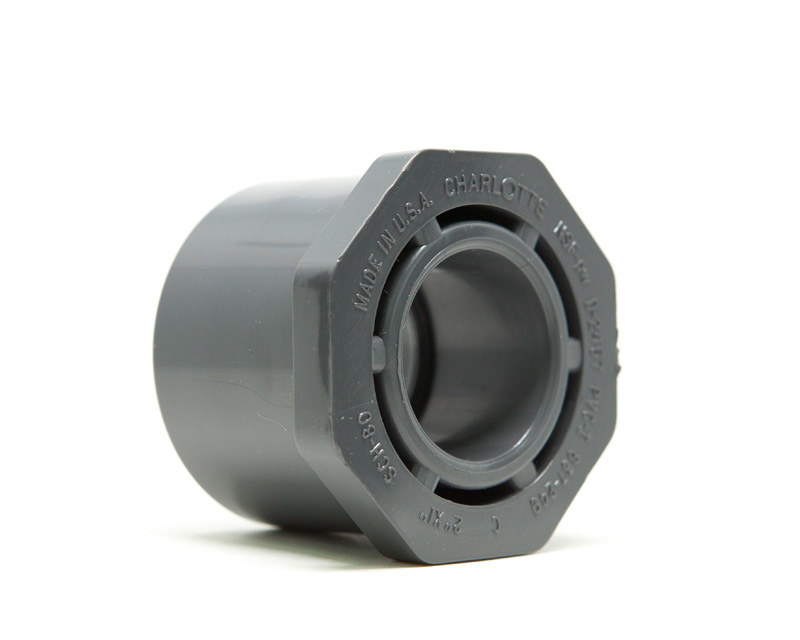

Product photo of a UPVC Schedule 80 reducing bush spigot x socket connection on a white background
diagram of a UPVC Schedule 80 reducing bush spigot x socket connection

Reducing Bush
Spigot x Socket

A uPVC Schedule 80 reducing bush with a spigot and solvent-weld socket end. Designed to reduce the nominal pipe size within a piping system, it fits neatly inside a larger socket fitting to accept a smaller pipe.
Code DN DN" L N
837101C 20 x 15 0.75" x 0.5" 33 11
837130C 25 x 15 1" x 0.5" 36 14
837131C 25 x 20 1" x 0.75" 36 11
837166C 32 x 15 1.25" x 0.5" 39 16
837167C 32 x 20 1.25" x 0.75" 39 13
837168C 32 x 25 1.25" x 1" 41 12
837209C 40 x 15 1.5" x 0.5" 44 22
837210C 40 x 20 1.5" x 0.75" 44 19
837211C 40 x 25 1.5" x 1" 44 16
837212C 40 x 32 1.5" x 1.25" 44 12
837247C 50 x 15 2" x 0.5" 48 26
837248C 50 x 20 2" x 0.75" 48 23
837249C 50 x 25 2" x 1" 48 20
837250C 50 x 32 2" x 1.25" 48 16
837251C 50 x 40 2" x 1.5" 49 14
837291C 65 x 40 2.5" x 1.5" 55 20
837292C 65 x 50 2.5" x 2" 55 17
837335C 80 x 25 3" x 1" 58 29
837337C 80 x 40 3" x 1.5" 58 23
837338C 80 x 50 3" x 2" 58 20
837339C 80 x 65 3" x 2.5" 58 13
837420C 100 x 50 4" x 2" 71 8
837422C 100 x 80 4" x 3" 71 24
837530C 150 x 80 6" x 3" 90 35
837532C 150 x 100 6" x 4" 90 33
837585C 200 x 150 8" x 6" 125 48
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
Diagram of a UPVC Schedule 80 Reducing Bush with a spigot x female npt thread

Reducing Bush
Spigot x F-NPT

A uPVC Schedule 80 reducing bush with a spigot end and a female NPT threaded end. Designed to reduce the nominal size within a piping system and transition from solvent-weld fittings to NPT threaded components, it provides a strong, pressure-rated connection.
Code DN DN" L N G
838072 15 x 8 0.5 x 0.25
838073 15 x 10 0.5 x 0.375
838101C 20 x 15 0.75" x 0.5" 32 13 27
838130C 25 x 15 1" x 0.5" 37 18 30
838131C 25 x 20 1" x 0.75" 35 16 30
838167C 32 x 20 1.25" x 0.75" 40 21 33
838168C 32 x 25 1.25" x 1" 40 15 33
838209C 40 x 15 1.5" x 0.5" 45 25 36
838210C 40 x 20 1.5" x 0.75" 45 16 36
838211C 40 x 25 1.5" x 1" 45 9 36
838212C 40 x 32 1.5" x 1.25" 43 17 36
838247C 50 x 15 2" x 0.5" 48 28 39
838248C 50 x 20 2" x 0.75" 48 28 39
838249C 50 x 25 2" x 1" 48 22 39
838251C 50 x 40 2" x 1.5" 49 23 39
838292C 65 x 50 2.5" x 2" 56 30 46
838338C 80 x 50 3" x 2" 58 31 49
838339C 80 x 65 3" x 2.5" 58 22 49
838420C 100 x 50 4" x 2" 69 43 59
838422C 100 x 80 4" x 3" 69 43 59
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • ASTM D-2464: PVC Threaded Fittings, Schedule 80
  • NSF Standard 14 & 61

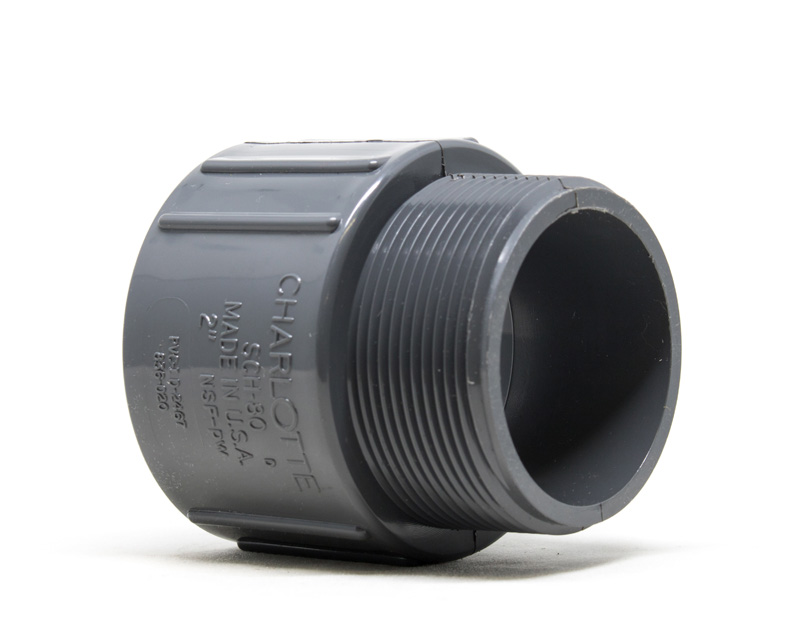

Product photo of a UPVC Schedule 80 Threaded Adaptor with a Socket x Male NPT threaded end on a white background
Diagram of a UPVC Schedule 80 Threaded Adaptor with a Socket x Male NPT threaded end

Threaded Adaptor
Socket x M-NPT

A uPVC Schedule 80 adaptor with a solvent-weld socket end and a male NPT threaded end. Designed to connect plain-end pipe to threaded components, it provides a durable, high-pressure transition between solvent-weld and NPT-threaded systems.
Code DN DN" L N
836005C 15 0.5" 31 5
836007C 20 0.75" 61 7
836010C 25 1" 51 5
836012C 32 1.25" 64 7
836015C 40 1.5" 67 7
836020C 50 2" 74 8
836025C 65 2.5" 94 9
836030C 80 3" 99 10
836040C 100 4" 115 12
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • ASTM D-2464: PVC Threaded Fittings, Schedule 80
  • NSF Standard 14 & 61

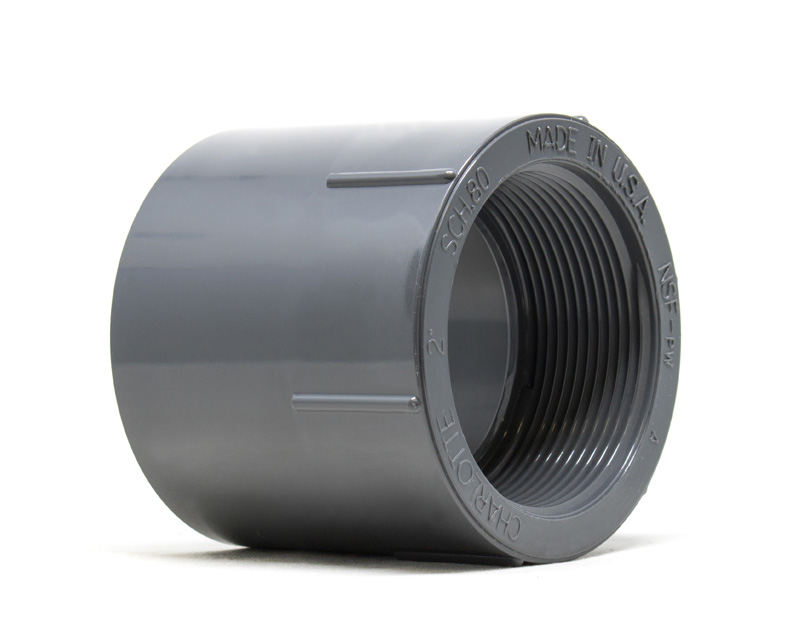

Product photo of a UPVC Threaded Adaptor with socket x female NPT threaded ends on a white background
Diagram of a UPVC Threaded Adaptor with socket x female NPT threaded ends

Threaded Adaptor
Socket x F-NPT

A uPVC Schedule 80 adaptor with a solvent-weld socket end and a female NPT threaded end. Designed to connect plain-end pipe to threaded components, it provides a durable, high-pressure transition between solvent-weld and NPT-threaded systems.
Code DN DN" L N
835005C 15 0.5" 46 3
835007C 20 0.75" 50 3
835010C 25 1" 58 3
835012C 32 1.25" 61 4
835015C 40 1.5" 66 4
835020C 50 2" 70 3
835025C 65 2.5" 92 6
835030C 80 3" 96 6
835040C 100 4" 108 7
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • ASTM D-2464: PVC Threaded Fittings, Schedule 80
  • NSF Standard 14 & 61
Product photo of a UPVC Schedule 80 Union with socket ends on a white background
Product diagram of a UPVC Schedule 80 Union with socket ends

Union
Socket Ends

A uPVC Schedule 80 union with solvent-weld socket ends, manufactured to ASTM D2467 standards and available with either EPDM or FPM (Viton®) seals. Designed for easy installation and maintenance, the union allows quick disassembly of pipe sections without cutting.
EPDM Code FPM Code DN DN" L N
897005C 857005C 15 0.5" 54 8
897007C 857007C 20 0.75" 62 12
897010C 857010C 25 1" 67 10
897012C 857012C 32 1.25" 75 12
897015C 857015C 40 1.5" 81 12
897020C 857020C 50 2" 93 17
897030C 857030C 80 3" 131 34
897040* 857040* 100 4" 146 29
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
Product photo of a UPVC Schedule 80 Cap with socket end on a white background
Diagram of a UPVC Schedule 80 Cap with socket end

Cap
Socket End

A uPVC Schedule 80 end cap with a solvent-weld socket connection, manufactured to ASTM D2467 standards. Designed to securely close off the end of a pipeline, it provides a strong, pressure-rated seal with excellent chemical resistance.
CodeDNDN"LS
847005C150.5"3523
847007C200.75"3826
847010C251"3829
847012C321.25"4732
847015C401.5"5135
847020C502"5539
847025C652.5"6645
847030C803"7248
847040C1004"8558
847060C1506"12077
847080C2008"164102
847100*25010"--
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • NSF Standard 14 & 61
See Our Full Range

For the full range available from Fusion download the Fusion Product Guide or Contact us.

Get the Product Guide

Benefits of UPVC Sch80

  • Excellent chemical resistance to many acids, alkalis, bases and salts.
  • Wide temperature rating of 0 - 60˚C.
  • High pressure rating up to 16 bar.
  • UV Resistant / Stabilised.
  • Free from toxicity, odours and tastes and conforms to NSF International Standard 61.
  • Highly resilient, tough and durable with high tensile and impact strength.
  • It's light weight and easy to handle. Reducing the cost of transportation and installation.
  • Easy to install with inexpensive tools and cleaner / glue.
  • Excellent corrosion resistance and doesn’t scale, pit or rust.
  • Smooth interior walls provide a high consistent flow rate and low friction loss.
  • Lower thermal conductivity factor than metal pipe. Therefore piped fluids maintain a more constant temperature.

Fusion: Australian Distributor for Charlotte Pipe Co.

Charlotte Pipe has been relentless in their commitment to quality and service for more than a century. They are a leading full-line manufacturer of UPVC, CPVC, and ABS piping systems for drainage and pressure applications. Charlotte’s systems are designed to fit together precisely for easier installation, fewer callbacks and a lifetime of trouble-free service.

Standards Compliance

Charlotte Pipe Co. UPVC pipe sch 80
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 1785: PVC Plastic Pipe, Schedule 80
  • NSF Standard 14: Plastic Piping Components & Related Materials
  • NSF Standard 61: Drinking Water System Components–Health Effects

Visit The Charlotte Pipe Co Technical Hub for more information about Charlotte's product certifications.

Charlotte Pipe Co. UPVC Schedule 80 Fittings
  • ASTM D 1784: Rigid Vinyl Compounds
  • ASTM D 2467: PVC Socket Fittings, Schedule 80
  • ASTM D 2464: PVC Threaded Fittings, Schedule 80
  • ASTM F 1970: Special Engineered Fittings, UPVC or CPVC Systems
  • NSF Standard 14: Plastic Piping Components & Related Materials
  • NSF Standard 61: Drinking Water System Components–Health Effects

Visit The Charlotte Pipe Co Technical Hub for more information about Charlotte's product certifications.

Sekisui UPVC pipe schedule 80
  • ASTM D 1784-08: Rigid Vinyl Compounds
  • ASTM D 1785-06: PVC Plastic Pipe, Schedule 80
  • NSF Standard 14: Plastic Piping Components & Related Materials
  • NSF Standard 61: Drinking Water System Components–Health Effects
  • They are NSF Annex G certified lead free.

Download the Sekisui Eslon Schedule 80 catalogue for more information about Sekisui's product certifications.

Sekisui UPVC Schedule 80 Fittings
  • ASTM D 1784-08: Rigid Vinyl Compounds
  • ASTM D 2467-06: PVC Socket Fittings, Schedule 80
  • ASTM D 2464: PVC Threaded Fittings, Schedule 80
  • NSF Standard 14: Plastic Piping Components & Related Materials
  • NSF Standard 61: Drinking Water System Components–Health Effects
  • They are NSF Annex G certified lead free.

Download the Sekisui Eslon Schedule 80 catalogue for more information about Sekisui's product certifications.

Polypipe Effast UPVC BSPP Threaded Fittings
  • EN ISO 1452: Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure — Unplasticized poly(vinyl chloride) (PVC-U)
  • ISO 228-1: Pipe threads where pressure-tight joints are not made on the threads

View more certification information from our supplier, Polypipe Effast

Van de Lande UPVC BSP Fittings
  • KIWA K5052-04: Solvent cement fittings of PVC-U and PVC-UH
  • KIWA K24408-04: Injection moulded fittings of PVC with flange
    connections
  • KIWA K24070-03: Couplers and fittings of PVC-U

View more certification information from our supplier, Van De Lande

FAQ

Which range of UPVC does Fusion Stock?

We carry stock of UPVC Schedule 80 pipe and fittings, British standard fittings, solvent cements, primers and accessories to help with installation.

What is Schedule 80?

A pipe’s “Schedule” is simply a reference to its wall thickness. A 2 inch schedule 80 pipe will have a smaller internal diameter than a 2 inch schedule 40 pipe. Therefore, the higher the schedule, the thicker the wall. The “Schedule” classification of pipe is used not only for PVC but also with other materials such as steel.

Why choose Schedule 80 over Schedule 40?

It depends on your application. Schedule 80’s thick wall provides for increased pressure loads and more suitability to harsher environments, making it commonly used in heavy duty commercial or industrial applications. Below is a brief table showing the differences.
UPVC Schedule 80 & 40 Comparison Table

Where has Fusion Supplied / Installed UPVC Schedule 80?

For hundreds of business across Australia. Some notable supply / install projects:
  • A chemical processing plant in Perth, Western Australia.
  • A chlor-alkali plant construction in Brisbane, Queensland.
  • Multiple water authority plants throughout Western Australia, Queensland and South Australia.
  • Mine site projects throughout the Pilbara Region in Western Australia.
  • Many containerised water treatment plants in Western Australia, Queensland and Papua New Guinea.

UPVC isn't suitable for my application, what else could I use?

Fusion can provided assistance to specify the most suitable plastic for your application. Depending on the conveyed chemical / media, pressure and temperature. Chlorinated polyvinyl chloride (CPVC) may be more suitable if the temperature exceeds +60˚C, or if you require UV resistance then High Density Polyethylene (HDPE) may be a better option. Please contact us if you require assistance with selecting the optimal plastic for your application.

Does Fusion sell steel piping systems?

While steel pipes / steel tubes and steel fittings have their advantages, our focus is on providing long term, corrosion free plastic piping systems.

How do steel pipe dimensions relate to UPVC schedule 80 dimensions?

Steel pipe dimensions and UPVC schedule 80 dimensions are not directly comparable as they use different sizing systems.

Steel pipe dimensions are typically specified using the Nominal Pipe Size (NPS) system, which refers to the approximate inner diameter of the pipe in inches. The actual outer diameter of the pipe, as well as its wall thickness, vary depending on the NPS size and the pipe schedule (the thickness of the pipe wall).

UPVC schedule 80, on the other hand, uses a different sizing system based on the thickness of the pipe wall. The schedule number represents the thickness of the pipe wall in relation to the pipe's nominal size. For example, UPVC schedule 80 pipes have a thicker wall than UPVC schedule 40 pipes of the same nominal size.

To compare steel pipe dimensions to UPVC schedule 80 dimensions, you would need to convert the NPS size of the steel pipe to an equivalent UPVC schedule 80 size based on the thickness of the pipe wall.

 However, keep in mind that steel pipes are typically used in different applications than UPVC pipes, and the choice of material and sizing should be based on the specific requirements of the project.

Interested in UPVC for your next project?

Contact Us
LOCATIONS
73 Bushland Ridge
Bibra Lake WA 6163
18 Woomera Place
Archerfield QLD 4108
OPEN
Mon - Thurs 8:00 - 4:30
Fri 8:00 - 4:00
Bureau Veritas ISO 9001 Certification Logo
Fusion Plastics and Fusion Piping Pty Ltd are ISO 9001, 45001 & 14001 certified companies
Copyright © Fusion Plastics (ABN 48‍084‍543‍742) & Fusion Piping (ABN 29‍103‍442‍922)
