Case Studies

Rectangular HDPE Tanks for Service Trucks

Project Details

Rectangular HDPE Tanks for Service Trucks
Project Number
Are you interested in Fusion's plastic fabrication services for your next project?
Contact us today

Client Background

A mining client commissioned the construction of seven rectangular High-Density Polyethylene (HDPE) storage tanks. These tanks were specifically designed to be integrated into service trucks for efficient, light weight, on-site maintenance at various mine sites.

Project Overview

The client's own design specifications were followed during the fabrication process. Each tank was fabricated by Fusion using high-quality HDPE sheets and steel reinforced HDPE fittings for enhanced durability and performance. The fusion fabrication process entailed the use of plastic extrusion welding techniques, ensuring a seamless and resilient bond between the HDPE sheets and the fittings. The tanks were crafted to be portable, allowing them to be conveniently moved around different mine sites for easy vehicle servicing.

Fabrication Process and Quality Assurance

After the completion of the fusion fabrication, all tanks underwent a hydrotesting procedure to validate their structural integrity. Additionally, a quality assurance check was conducted, ensuring that the tanks complied with the client's specific requirements.


The successful fabrication of seven rectangular HDPE storage tanks has enabled the client to enhance their vehicle servicing capabilities within mining operations.

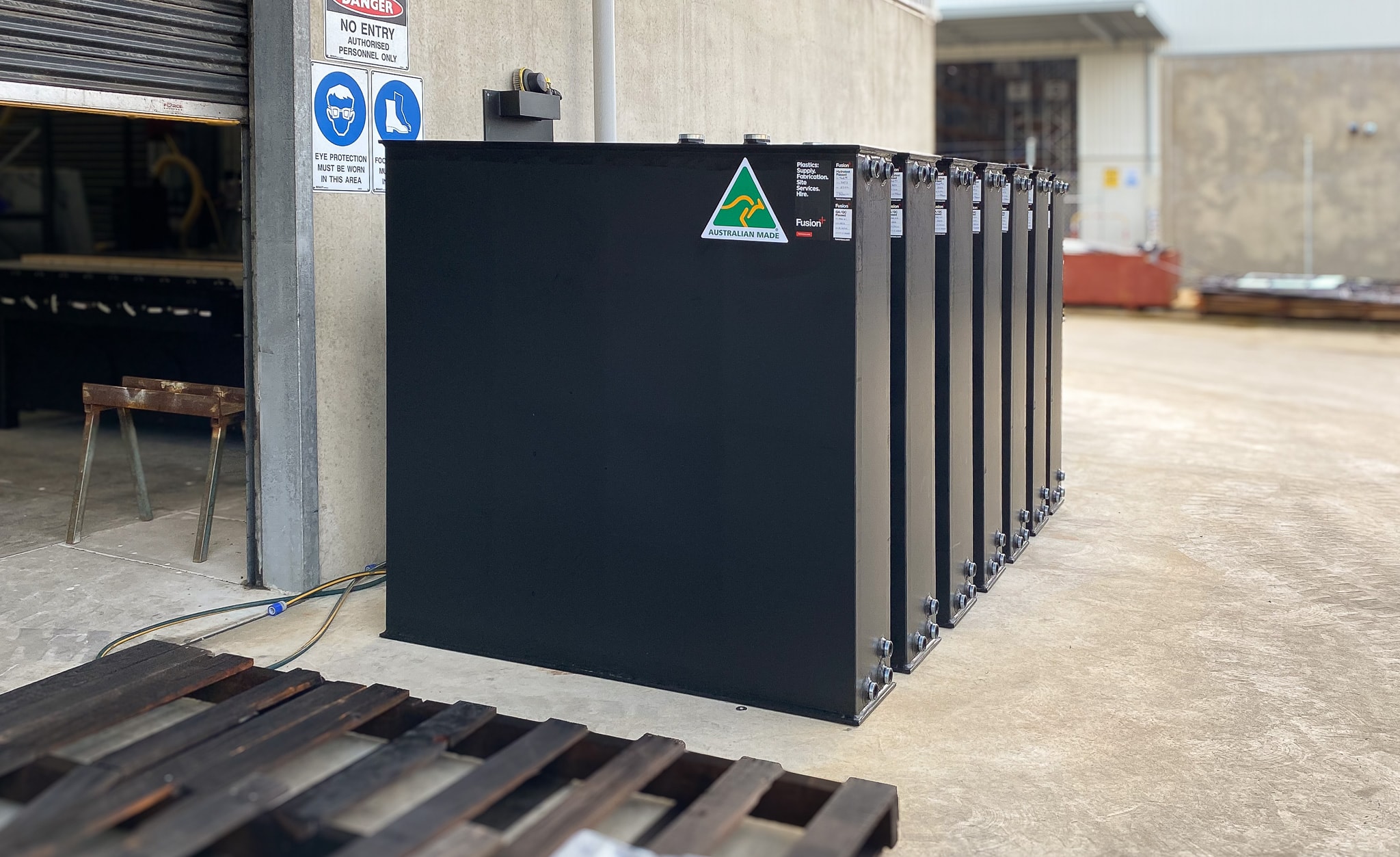

HDPE Rectangular Fabricated Tanks for Service Trucks
The top of the tanks showing QA / QC and Hydrotesting was undertaken

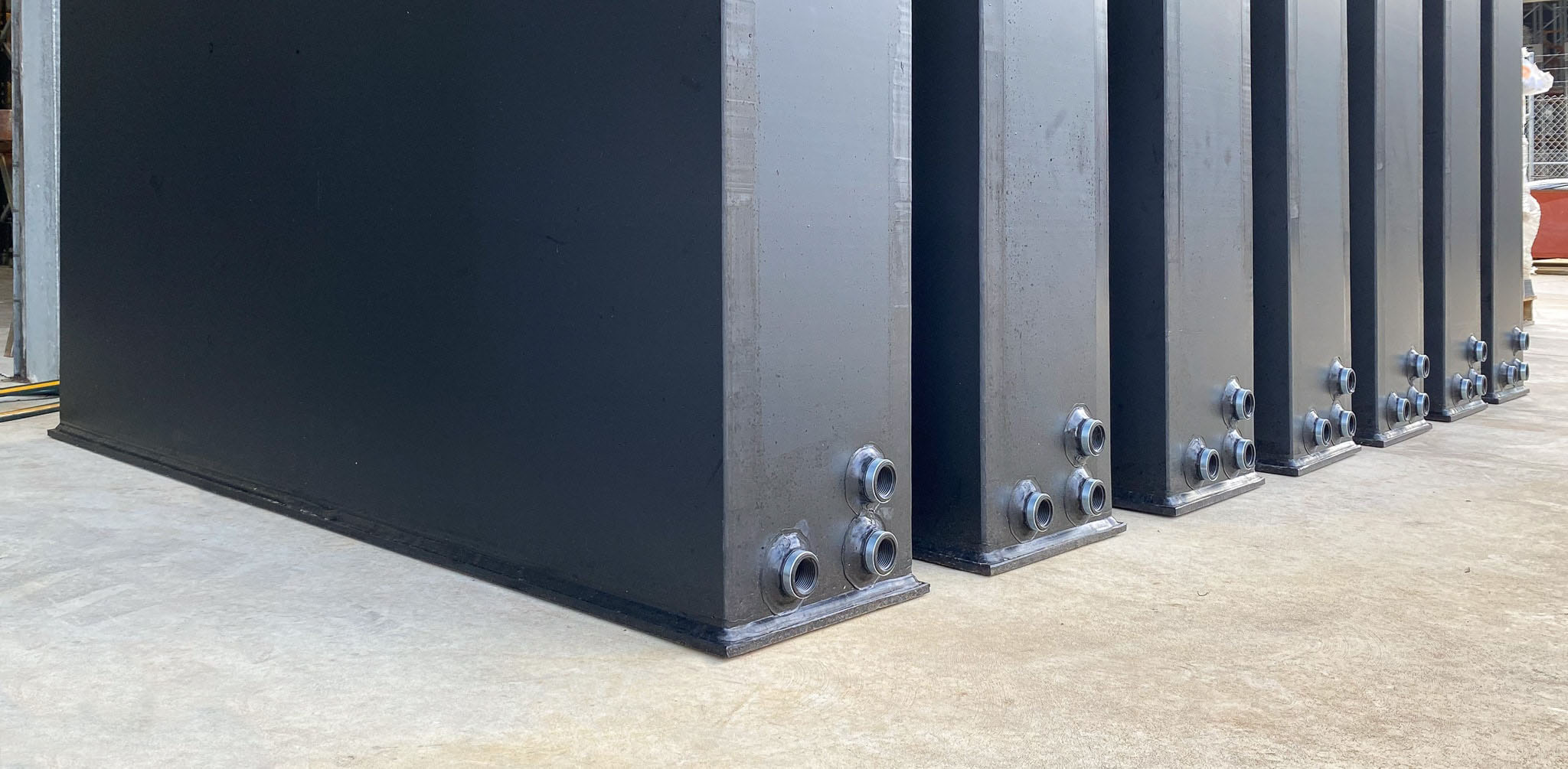

Rectangular tank bottom showing the reinforced fittings
Detail of the rectangular tank bottom showing the extensive extrusion welding and steel reinforced fittings
