UPVC British Standard Fittings

Unplasticised Polyvinyl Chloride
UPVC fittings also commonly referred to as PVC, uPVC, PVCU or PVC-U are suitable for use within the water treatment, chemical processing and similar industries.

UPVC British Standard is an extremely versatile product that has uses ranging from drinking water to highly corrosive chemical applications. The product contains UV stabilising additives and thermal properties which ensure that it is suitable for both interior and exterior environments. Its smooth texture also ensures that there is limited build up of materials or scale from the liquids during operations.

The product is lightweight (compared to metallic systems) and easy to handle and install.
Effat PVC / UPVC British Standard Threaded Adaptor Fitting - Spigot x Female BSP Thread on a white background
Size Range
0.375 – 4 inch
Operating Temperature
0 – 60°C
Jointing Technology
Solvent cement
Pressure Rating
Up to 16 bar (1600 kpa)
Effast UPVC British Standard Adaptor Coupling (Imperial to Metric Sockets) on a white background
UPVC Adaptor Coupling Metric to Imperial Dimensional Drawing

Coupling
Imperial x Metric Socket

A uPVC adaptor coupling designed to connect imperial size plastic pipes to metric size plastic pipes. Featuring socket connections at both ends, it provides a secure and reliable transition between differing pipe standards, ensuring compatibility in water, chemical, and general fluid handling systems.
Code [PN16] DN DN" L L1 Z E
721913106 15 x d20 0.5" x d20 17 16 4 26
721913107 20 x d25 0.75" x d25 20 19 4 33
721913108 25 x d32 1" x d32 23 22 4 41
721913109 32 x d40 1.25" x d40 27 26 4 51
721913110 40 x d50 1.5" x d50 32 31 4 60
721913111 50 x d63 2" x d63 38 38 3 74
721913113 80 x d90 3" x d90 51 50 6 105
721913115 100 x d110 4" x d110 63 61 8 128
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, DIN 8063, BS 3505, BS 4346.
PN15
Effast

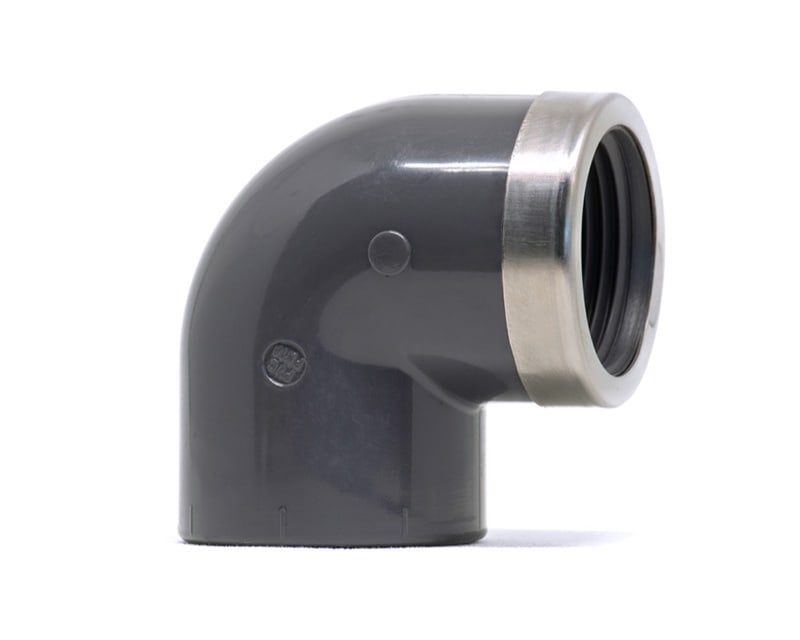

Product photo of a UPVC British Standard 90° Elbow with socket x reinforced female BSP threaded end on a white background
Dimensional Drawing of an Elbow 90° Socket x Reinforced F-BSP Dimensional Drawing

Elbow 90°
Socket x Reinforced F-BSP

A uPVC British Standard 90-degree elbow with one socket end and one stainless steel reinforced female BSP threaded end.
CodeDNDN"L1L2Z1Z2E
721101206150.5"1715111328
721101207200.75"2016.3141734
721101208251"2319.1172142
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346, ISO 228-1
  • Stainless steel reinforcing ring
  • BSPP thread
PN15
Effast

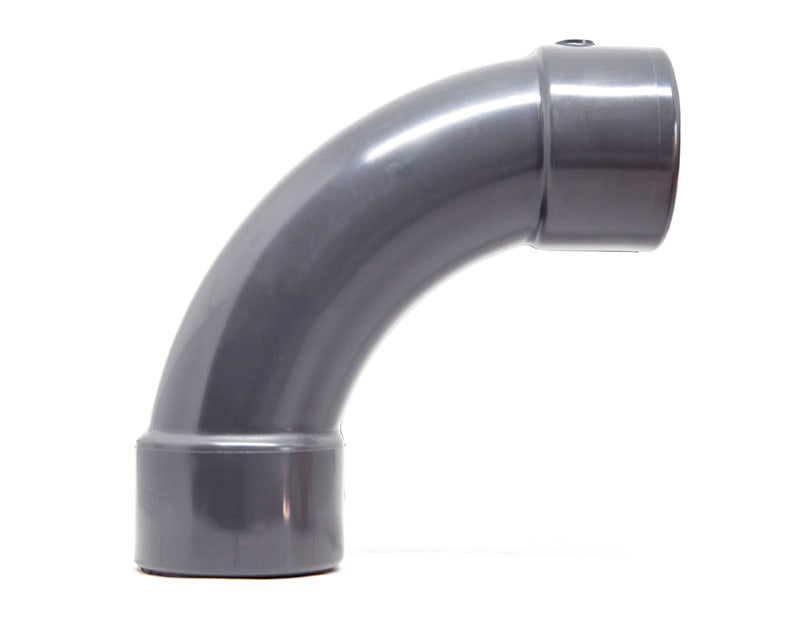

Photo of a PVC 90° Bend British Standard with socket ends on a white background
90° UPVC Bend Dimensional Diagram

Bend 90°
Socket Ends

A uPVC 90-degree bend with socket connections at both ends. Manufactured to British Standard dimensions, it allows smooth directional changes in plastic piping systems while maintaining reliable, leak-free joints. Suitable for water, chemical, and general fluid handling applications.
CodeDNDN"LZE
721001106150.5"164028
721001107200.75"195035
721001108251"226442
721001109321.25"268051
721001110401.5"3110063
721001111502"3812677
721001113803"51180113
7210011151004"61220132
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346.
PN15
Effast

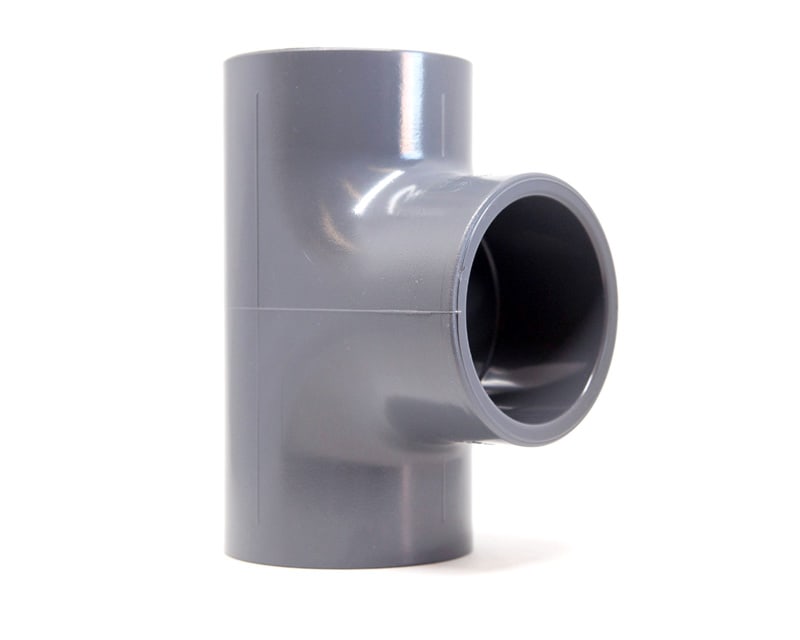

Photo of a UPVC Tee 90° British Standard on a white background
Dimensional Diagram of a UPVC Tee 90° with a female BSP threaded offtake on a white background

Tee 90°
Sockets x Reinforced F-BSP

A uPVC 90-degree tee with socket connections on the main line and a female BSP threaded off-take. Designed for branching plastic piping systems to threaded components, it provides a durable and leak-resistant connection suitable for water, chemical, and general fluid handling applications.
CodeDNDN"L1L2Z1Z2E
721201206150.5"1715111328
721201207200.75"1916.3141734
721201208251"2319.1172142
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346, ISO 228-1
  • Stainless steel reinforcing ring
  • BSPP thread
PN15
Effast

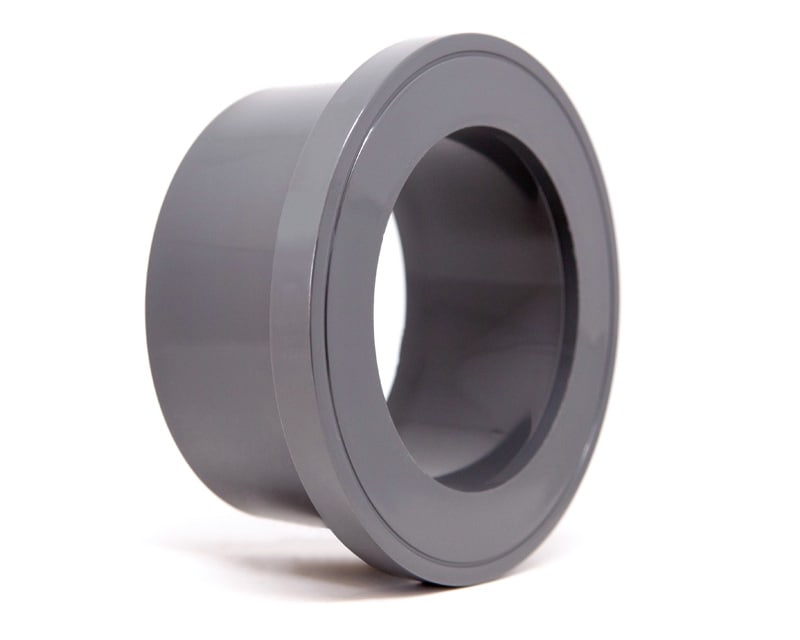

product photo of a UPVC Stub flange with serrated face on a white background
Dimensional diagram of a upvc stub flange

Stub Flange
Serrated Jointing Face x Socket

A uPVC stub flange with a serrated (raised) face, designed for solvent-weld pipe systems. It enables the creation of a robust, pressure-rated joint when paired with backing rings, a stub gasket, and suitable fasteners, making flange-to-flange connections straightforward.
CodeDNDN"d1LZEFS
721791106150.5"2716334163
721791107200.75"3319441213
721791108251"4122450287
721791109321.25"5026361328
721791110401.5"6132473389
721791111502"76384905010
721791113803"1085241258211
7217911151004"13162514910612
7217911171506"19387721416513
721791120200*8"248119927320820
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346.
  • *8" = PN9
PN15
Effast

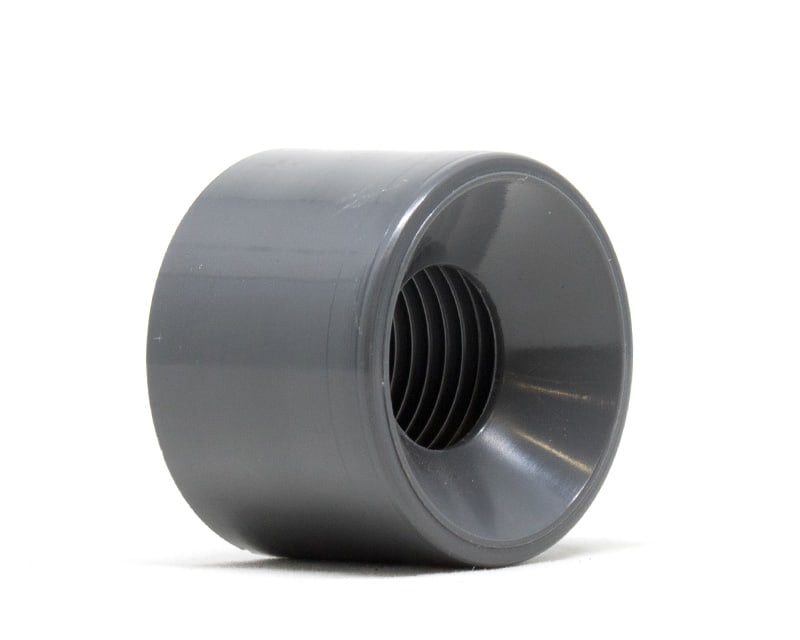

Product photo of a UPVC Adaptor Bush converting spigot to F-BSP on a white background

Bush
Spigot x F-BSP

A uPVC adaptor bush with a spigot end and a female BSP threaded end. Designed to convert plain-end plastic pipe to threaded connections, it provides a secure, durable joint between solvent-weld systems and BSP-threaded components.
Code DN DN"
721901534 15 x 10 0.5" x 0.375"
721901537 20 x 15 0.75" x 0.5"
721901542 25 x 15 1" x 0.5"
721901541 25 x 20 1" x 0.75"
  • BSPP Thread
PN15

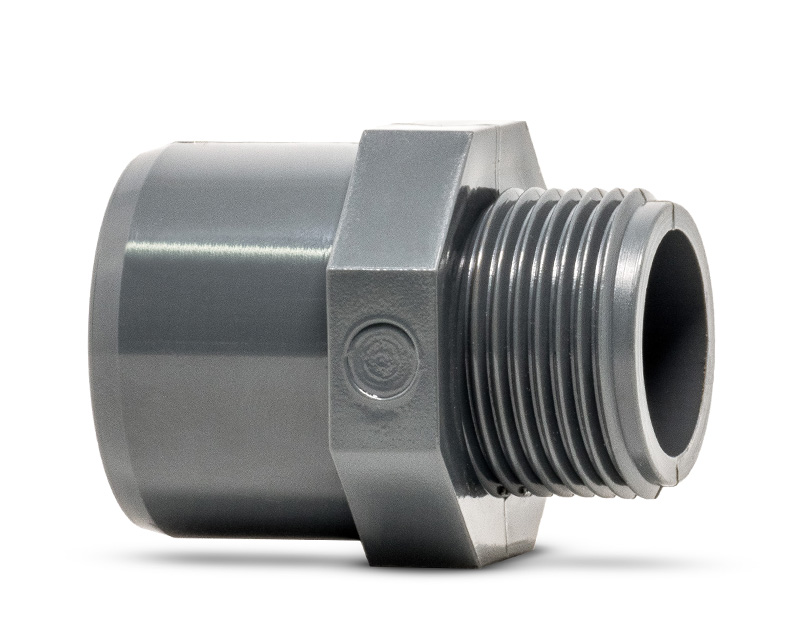

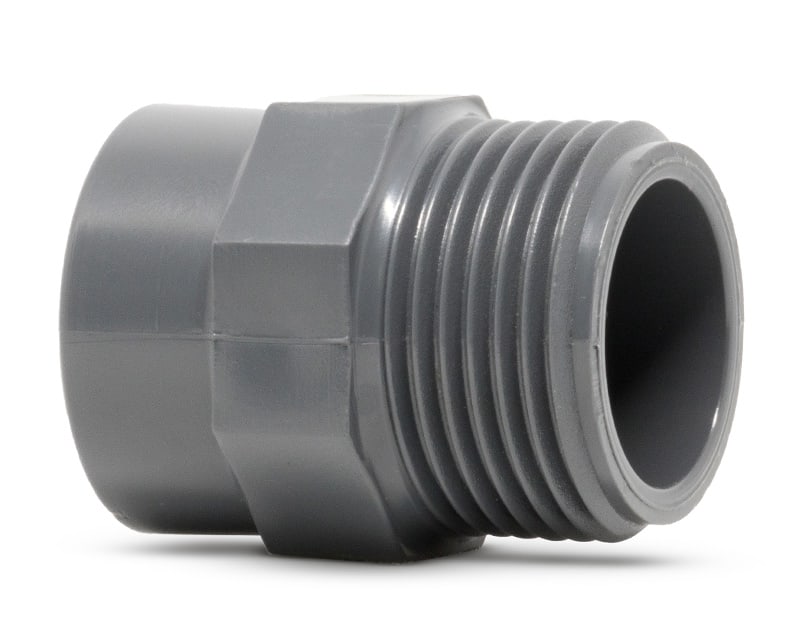

Product photo of a UPVC Threaded Adaptor Socket x M-BSP on a white background
Dimensional diagram of a UPVC Threaded Adaptor Socket x M-BSP on a white background

Threaded Adaptor
Socket x M-BSP

A versatile uPVC male adaptor with a solvent-weld socket end that can also double as a spigot and features a male BSP (BSPP) threaded connection.
Code DN [B/G]DN" [B/G]B1*LL1L2H
721911706150.5"0.75"17201546
721911707200.75"1"202316.350
721911708251"1.25"232719.157
721911709321.25"1.5"273221.467
721911710401.5"2"323921.474
721911711502"2.5"394425.784
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346, ISO 228-1
  • * Alternatively can be used as a Spigot x M-BSP fitting. Refer to B1 for spigot dimension.
  • BSPP Thread.
PN15
Effast

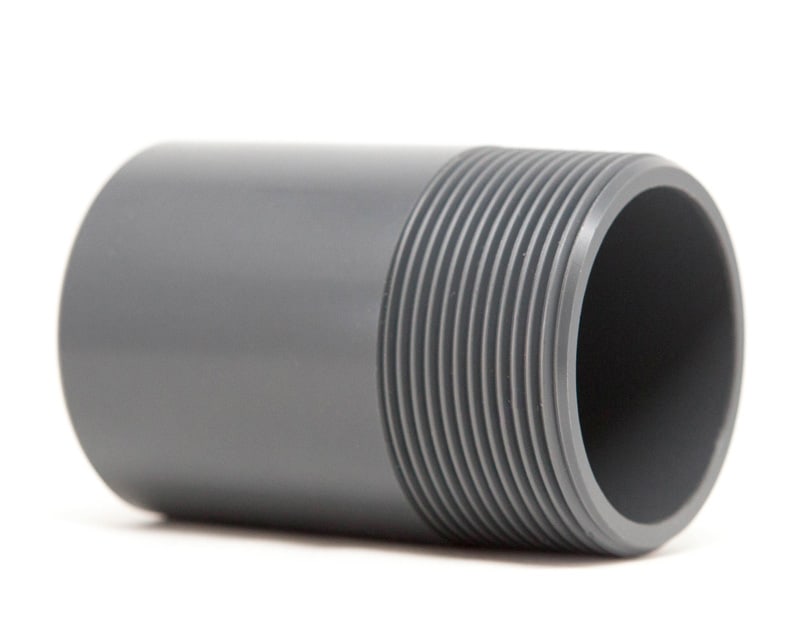

Product photo of a UPVC Threaded Adaptor spigot x M-BSP on a white background
Dimensional diagram of a UPVC Threaded Adaptor spigot x M-BSP

Threaded Adaptor
Spigot x M-BSP

A uPVC adaptor nipple with a spigot end and a male BSP threaded end. Designed for connecting solvent-weld plastic piping systems directly to BSP-threaded components.
Code DN DN" L1 L2
721913906 15 0.5" 50 16
721913907 20 0.75" 56 17
721913908 25 1" 63 20
721913909 32 1.25" 75 24
721913910 40 1.5" 88 30
721913911 50 2" 88 32
721913913 80 3" 128 39
721913915 100 4" 153 43
  • BSP Male Taper Threaded
PN9
Effast

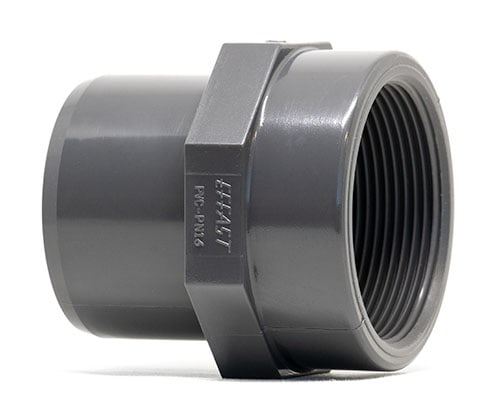

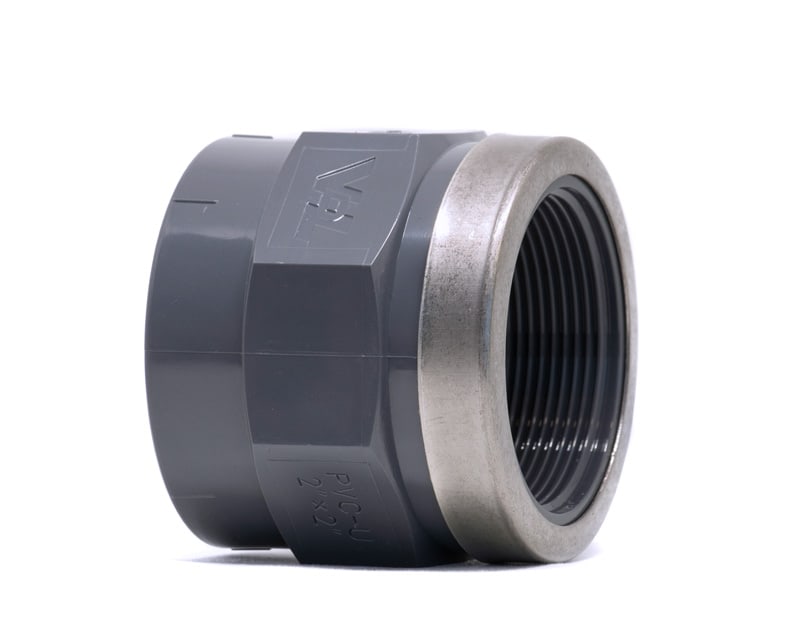

Product photo of a UPVC Threaded Adaptor Socket x Reinforced F-BSP on a white background
Dimensional Diagram of a UPVC Threaded Adaptor Socket x Reinforced F-BSP

Threaded Adaptor
Socket x Reinforced F-BSP

A uPVC female adaptor with a solvent-weld socket end and a female BSP threaded connection.
CodeDNDN"ZBDS
721911006150.5"1171532
721911007200.75"3201636
721911008251"2232246
721911009321.25"1282255
721911010401.5"3302566
721911011502"4362880
  • Stainless steel reinforcing ring
PN16
Van De Lande

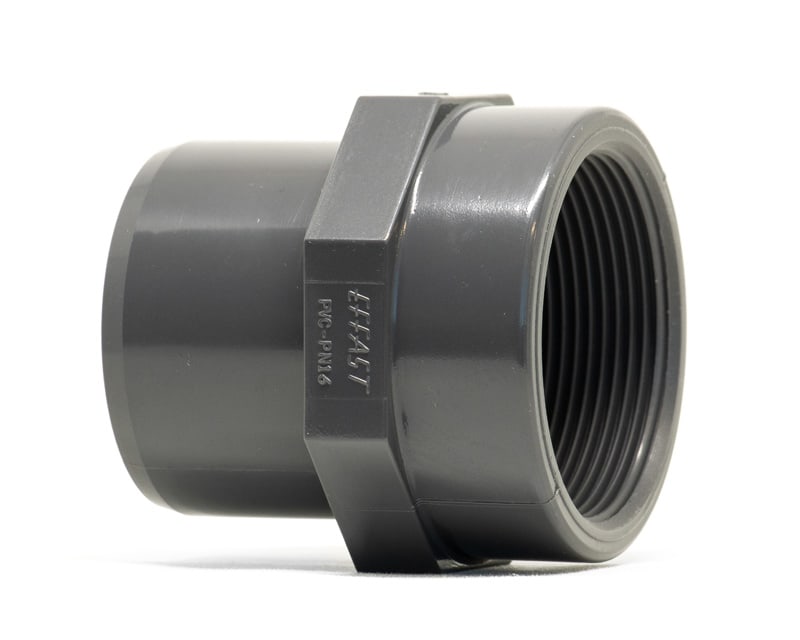

Product photo of a UPVC Threaded Adaptor Spigot x F-BSP on a white background
Dimensional Diagram of a UPVC Threaded Adaptor Spigot x F-BSP

Threaded Adaptor
Spigot x F-BSP

A uPVC female adaptor with a spigot end and a female BSP threaded connection.
Code DN DN" L1 L2 H
721901406 15 0.5" 17 15 40
721901407 20 0.75" 20 16.3 45
721901408 25 1" 23 19.1 51
721901409 32 1.25" 27 21.4 58
721901410 40 1.5" 32 21.4 64
721901411 50 2" 39 26 75
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346, ISO 228-1
PN15
Effast

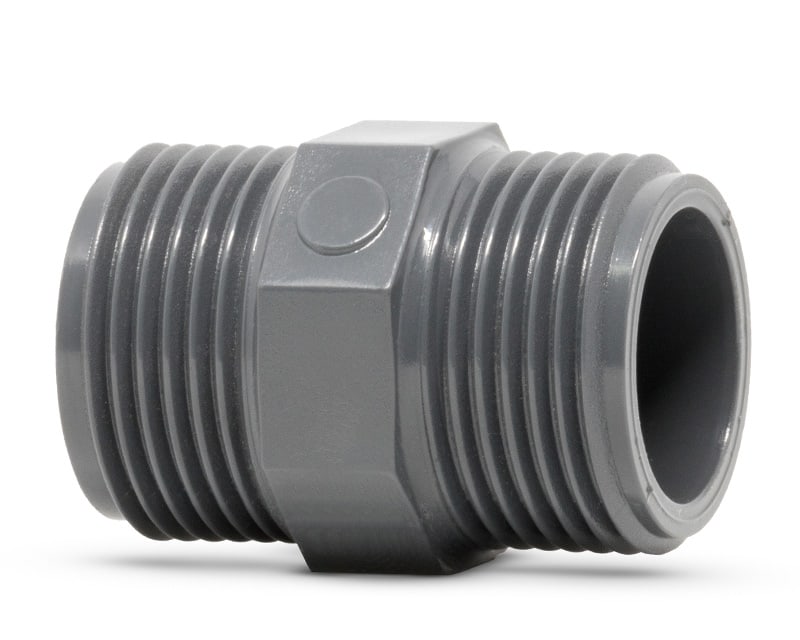

Product photo of a UPVC Adaptor M-BSP both ends on a white background
Dimensional diagram of a UPVC Adaptor M-BSP both ends

Threaded Adaptor
M-BSP Ends

A uPVC straight adaptor with male BSPP threads on both ends. Designed to join or extend threaded components, it provides a durable and leak-resistant connection suitable for water, chemical, and general fluid handling applications.
Code DN DN" L min H
721911906 15 0.5" 15 42
721911907 20 0.75" 16.3 45
721911908 25 1" 19.1 50
721911909 32 1.25" 21.4 58
721911910 40 1.5" 21.4 58
721911911 50 2" 25.7 67
  • Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • BSPP Threads.
PN16
Effast

Threaded Adaptor
M-BSP x F-BSP

A uPVC threaded reducing adaptor with a female BSPP thread on one end and a larger male BSPP thread on the other. Designed to connect components of different BSPP thread sizes, it provides a secure, corrosion-resistant transition suitable for water, chemical, and general fluid handling systems.
CodeDNDN"L1L2HE
72191083415 x 100.5" x 0.375"1511.43623
72191083720 x 150.75" x 0.5"16.3154128
72191084225 x 151" x 0.5"19.1154328
72191084125 x 201" x 0.75"19.116.34534
72191084632 x 251.25" x 1"21.419.15142
72191085240 x 321.5" x 1.25"21.421.45551
72191085850 x 402" x 1.5"2621.45758
  • Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • BSPP Threads.
PN16
Effast

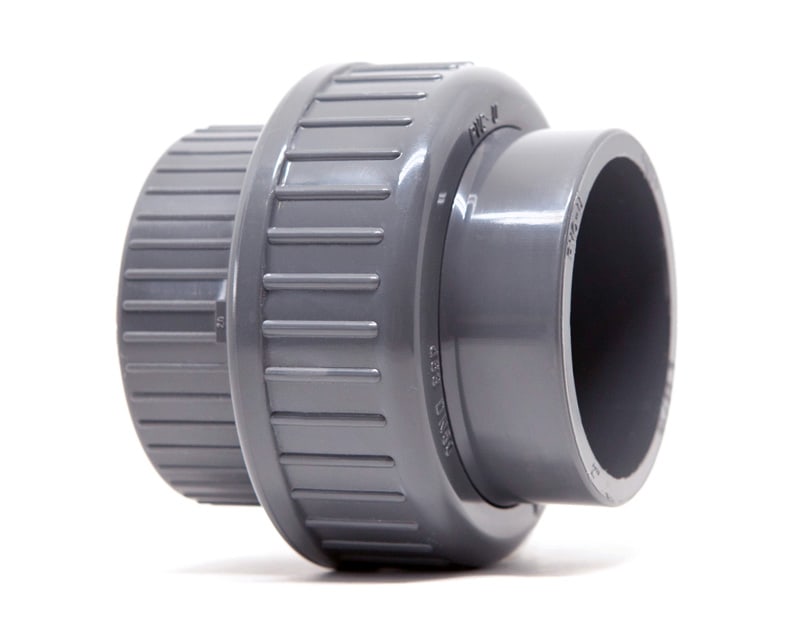

Product photo of a UPVC British Standard Union on a white background
Dimensional Diagram of a UPVC British Standard Union

Union
Socket Ends

A uPVC union featuring solvent-weld (British Standard) ends, designed to join two pipes of the same nominal size securely under pressure while allowing for easy disassembly or maintenance. It combines reliable connection integrity with the flexibility of quick servicing—ideal for applications in water handling, chemical processing, and general fluid systems.
EPDM Code DN DN" L min Z max H E F
721511106 15 0.5" 16 13 42 43 1"
721511107 20 0.75" 19 13 51 54 1.25"
721511108 25 1" 22 13 57 61 1.5"
721511109 32 1.25" 27 14 68 75 2"
721511110 40 1.5" 31 18 80 81 2.25"
721511111 50 2" 38 22 98 99 2.75"
  • Standards: EN ISO 1452, EN ISO 15493, EN 727, BS 3505, BS 4346
PN15
Effast
Dimensional Diagram of a UPVC British Standard Union with F-BSP Ends

Union
F-BSP Ends

A uPVC threaded union with female BSPP threads on both ends, designed to join two threaded components securely while allowing for easy disassembly and maintenance.
EPDM Code DN DN" L min Z Max H E F
721510606 15 0.5" 15 15.5 45.5 43 1"
721510607 20 0.75" 16.3 19.4 52 54 1.25"
721510608 25 1" 19.5 19 58 61 1.5"
721510609 32 1.25" 21.4 25.7 68.5 75 2"
721510610 40 1.5" 21.4 37.2 80 81 2.25"
721510611 50 2" 25.7 46.6 98 99 2.75"
  • Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • BSPP Threads.
PN16
Effast

Union Parts

Replacement parts for uPVC unions, supplied individually. Options include female BSPP threaded ends, metric solvent-weld socket ends, and FPM (Viton®) seals. Designed to be used with the corresponding full union body, these spare parts ensure long service life, easy maintenance, and continued reliability of the piping system.
DN DN" 1 x FPM Seal 1 x F-BSP End Size 1 x Metric End
15 0.5" 1.3.16.050 1.3.17.050 d20 1.3.18.050
20 0.75" 1.3.16.075 1.3.17.075 d25 1.3.18.075
25 1" 1.3.16.100 1.3.17.100 d32 1.3.18.100
32 1.25" 1.3.16.125 1.3.17.125 d40 1.3.18.125
40 1.5" 1.3.16.150 1.3.17.150 d50 1.3.18.150
50 2" 1.3.16.200 1.3.17.200 d63 1.3.18.200
  • F-BSP End: Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • F-BSP End: BSPP Thread.
  • Metric End: Standards: EN ISO 1452, EN ISO 15493, EN 727, DIN 8063
PN16
Effast

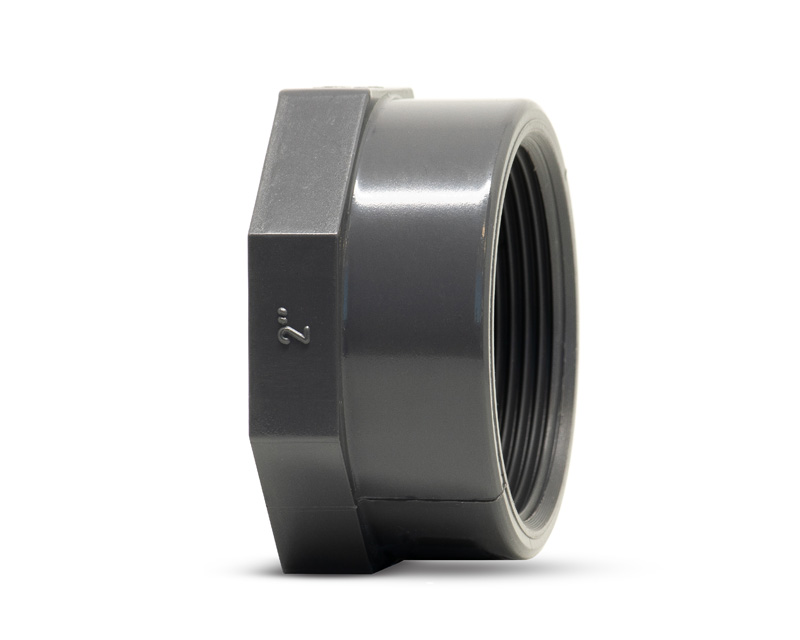

Product photo of a UPVC British Standard Cap with F-BSP end on a white background
Dimensional Drawing of a UPVC British Standard Cap with F-BSP end

Cap
F-BSP End

A uPVC end cap with a female BSPP threaded connection. Designed to securely close off the end of a threaded pipeline or fitting.
Code DN DN" L H E CH
721960606 15 0.5" 15 26 28 30
721960607 20 0.75" 16.3 28 34 36
721960608 25 1" 19.1 32 42 46
721960609 32 1.25" 21.4 35 51 55
721960610 40 1.5" 21.4 35 58 60
721960611 50 2" 26 39 72 75
  • Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • BSPP Thread
PN16
Effast

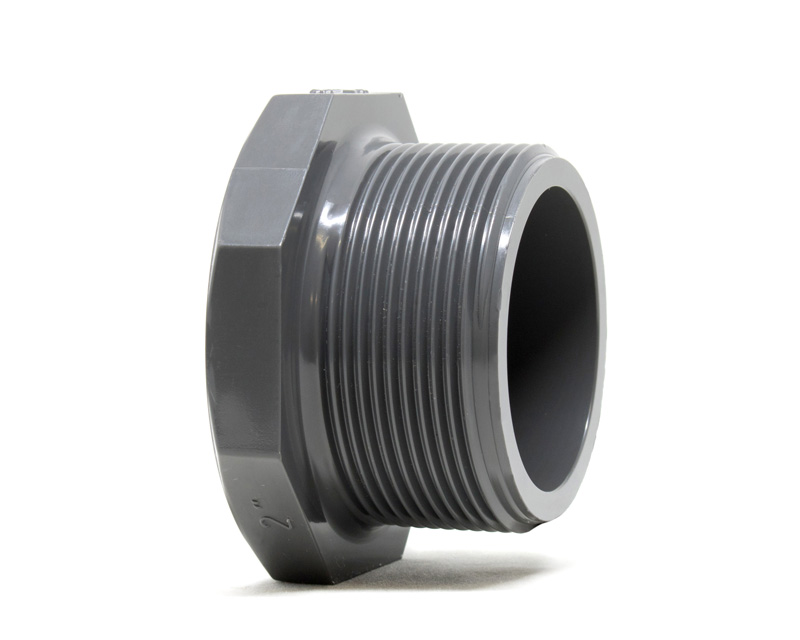

Product photo of a UPVC British Standard Plug M-BSPP on a white background
Dimensional Diagram for a UPVC British Standard Plug M-BSPP

Plug
M-BSP End

A uPVC plug with a male BSPP threaded connection. Designed to seal off female-threaded fittings or pipeline ends.
Code DN DN" L H CH
721961906 15 0.5" 15 29 24
721961907 20 0.75" 16.3 30 30
721961908 25 1" 19.1 33 36
721961909 32 1.25" 21.4 39 46
721961910 40 1.5" 21.4 39 50
721961911 50 2" 26 43 65
  • Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • BSPP Thread.
PN16
Effast

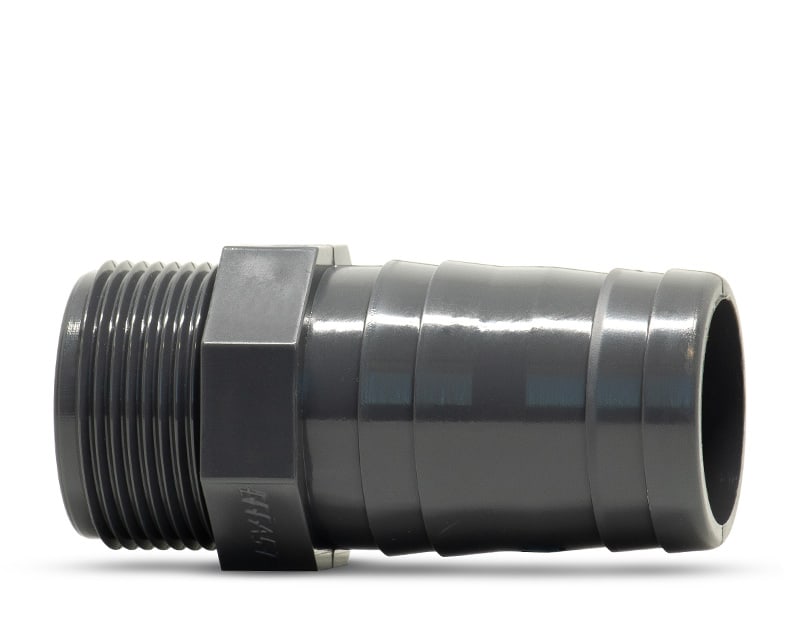

Product photo of a UPVC British Standard Hose Connector with M-BSPP x Hose ends on a white background
Dimensional drawing of a UPVC British Standard Hose Connector with M-BSPP x Hose ends

Hose Connector
M-BSP x Hose End

A versatile uPVC hose adaptor with a BSPP male thread on one end and a hose-tail barb on the other. Designed to connect flexible hoses to threaded plastic systems securely, it delivers a durable, leak-resistant transition ideal for water, chemical, and general fluid-handling applications.
Code DN DN" d1 d2 L H CH
721960705 10 0.375" 16 18 12 64 19
721960706 15 0.5" 20 22 15 70 24
721960707 20 0.75" 25 27 17 76 30
721960708 25 1" 32 34 20 80 36
721960709 32 1.25" 40 42 22 92 46
  • Standards: EN ISO 1452, EN ISO 15493, ISO 228-1
  • BSPP Thread
PN16
Effast

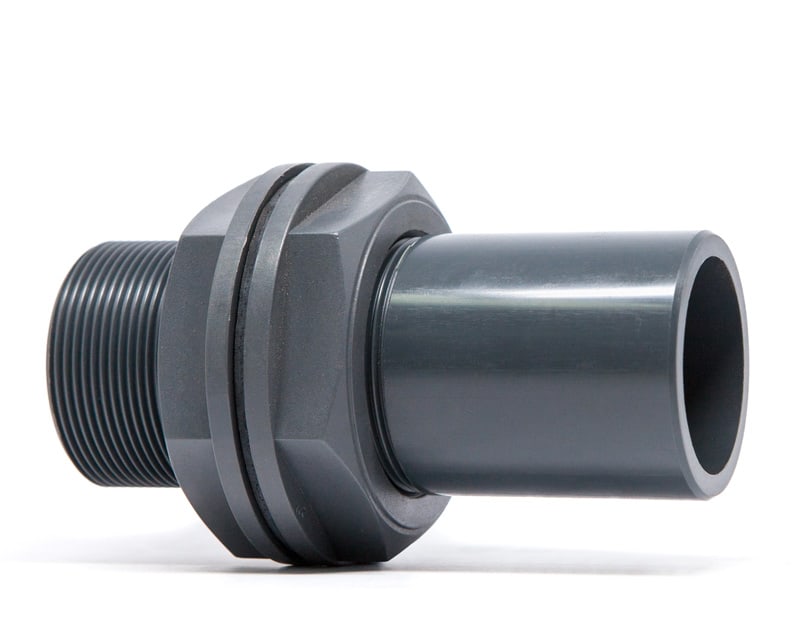

Product photo of a UPVC British Standard Tank Adaptor with a spigot x M-BSP end on a white background
Dimensional drawing of a UPVC British Standard Tank Adaptor with a spigot x M-BSP end

Tank Adaptor
Spigot x M-BSP End

A uPVC tank adaptor set consisting of a toe nipple, two threaded nuts, and an EPDM seal gasket. Designed for installing a secure, leak-tight connection through the wall of a tank, it allows reliable attachment of pipework or fittings to storage and process vessels.
EPDM Code DN DN" L1 L2 O
161051226 15 0.5" 77 42 38
161051227 20 0.75" 77 42 42
161051228 25 1" 103 55 55
161051229 32 1.25" 121 70 65
161051230 40 1.5" 128 73 72
161051231 50 2" 154 82 93
PN9
Effast
See Our Full Range

For the full range available from Fusion download the Fusion Product Guide or Contact us.

Get the Product Guide

Benefits of UPVC British Standard

  • Excellent chemical resistance to many acids, alkalis, bases and salts.
  • Wide temperature rating of 0 - 60˚C.
  • High pressure rating up to 16 bar.
  • UV Resistant / Stabilised.
  • Free from toxicity, odours and tastes.
  • Highly resilient, tough and durable with high tensile and impact strength.
  • It's light weight and easy to handle. Reducing the cost of transportation and installation.
  • Easy to install with inexpensive tools and cleaner / glue.
  • Excellent corrosion resistance and doesn’t scale, pit or rust.
  • Smooth interior walls provide a high consistent flow rate and low friction loss.
  • Lower thermal conductivity factor than metal pipe. Therefore piped fluids maintain a more constant temperature.

Fusion: Australian Distributor for Effast & Van De Lande

Fusion stocks British Standard UPVC fittings from leading European manufacturers Polypipe Effast and Van De Lande. Their fittings connect seamlessly with our UPVC Schedule 80 range, offering BSP threads to join with pumps, sensors and more.

Standards Compliance

Polypipe Effast UPVC BSPP Threaded Fittings
  • EN ISO 1452: Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure — Unplasticized poly(vinyl chloride) (PVC-U)
  • ISO 228-1: Pipe threads where pressure-tight joints are not made on the threads

View more certification information from our supplier, Polypipe Effast

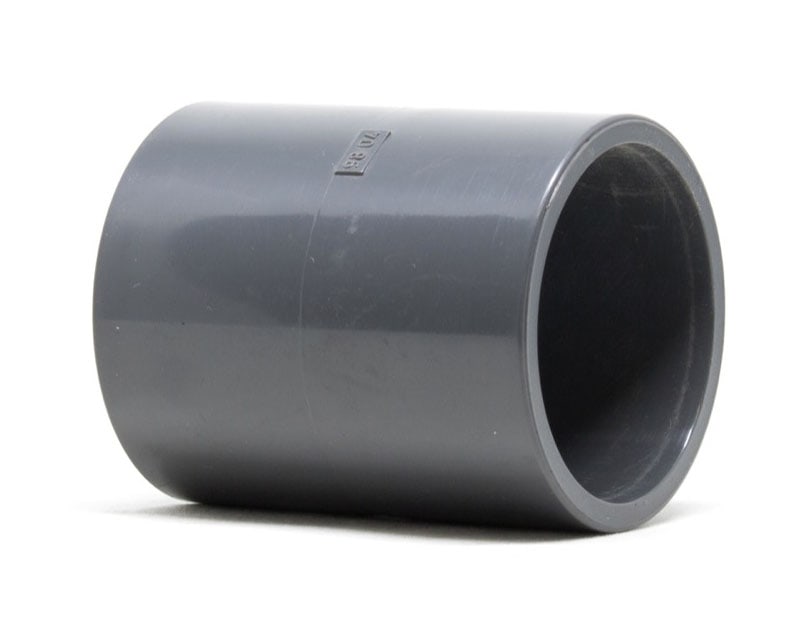

Van de Lande UPVC BSP Fittings
  • KIWA K5052-04: Solvent cement fittings of PVC-U and PVC-UH
  • KIWA K24408-04: Injection moulded fittings of PVC with flange
    connections
  • KIWA K24070-03: Couplers and fittings of PVC-U

View more certification information from our supplier, Van De Lande

FAQ

Which range of UPVC does Fusion Stock?

We carry stock of UPVC Schedule 80 pipe and fittings, British standard fittings, solvent cements, primers and accessories to help with installation.

What is British Standard?

British Standard fittings are imperial sized (0.5", 0.75", 1", 2", etc.) and manufactured to the British Standards (BS 3505, BS 4346, etc.). Threads on British Standard fittings are BSPP/BSPT and pressures are generally expressed in bar (PN ratings).

What is the difference between British Standard and Schedule 80 fittings?

Both systems use the same imperial outside diameters. For example, a 1" British Standard fitting will solvent weld onto 1" Schedule 80 pipe. The difference is in the standards: Schedule 80 (ASTM) fittings are rated by schedule number with pressures in PSI and typically use NPT threads, while British Standard fittings are rated by PN class with pressures in bar and use BSP threads.

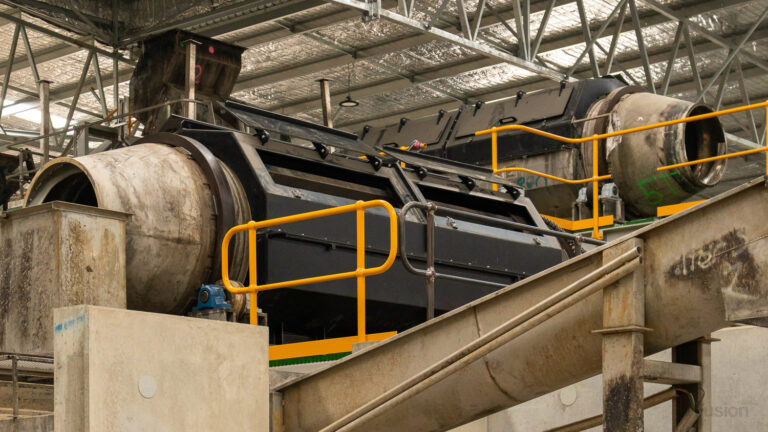

Where has Fusion supplied / installed UPVC pipe & fittings?

For hundreds of business across Australia. Some notable supply / install projects:
  • A chemical processing plant in Perth, Western Australia.
  • A chlor-alkali plant construction in Brisbane, Queensland.
  • Multiple water authority plants throughout Western Australia, Queensland and South Australia.
  • Mine site projects throughout the Pilbara Region in Western Australia.
  • Many containerised water treatment plants in Western Australia, Queensland and Papua New Guinea.

UPVC isn't suitable for my application, what else could I use?

Fusion can provided assistance to specify the most suitable plastic for your application. Depending on the conveyed chemical / media, pressure and temperature. Chlorinated polyvinyl chloride (CPVC) may be more suitable if the temperature exceeds +60˚C, or if you require UV resistance then High Density Polyethylene (HDPE) may be a better option. Please contact us if you require assistance with selecting the optimal plastic for your application.

Does Fusion sell steel piping systems?

While steel pipes / steel tubes and steel fittings have their advantages, our focus is on providing long term, corrosion free plastic piping systems.

Interested in UPVC for your next project?

Contact Us
LOCATIONS
73 Bushland Ridge
Bibra Lake WA 6163
18 Woomera Place
Archerfield QLD 4108
OPEN
Mon - Thurs 8:00 - 4:30
Fri 8:00 - 4:00
Bureau Veritas ISO 9001 Certification Logo
Fusion Plastics and Fusion Piping Pty Ltd are ISO 9001, 45001 & 14001 certified companies
Copyright © Fusion Plastics (ABN 48‍084‍543‍742) & Fusion Piping (ABN 29‍103‍442‍922)
