HDPE / PE100 Pipe & Fittings

High Density Polyethylene

High Density Polyethylene (HDPE / PE100) pipe and fittings are durable, mechanically strong and high-impact resistant. Fusion supplies and installs PE100 fittings and pipe.

PE is used extensively in water treatment, water distribution and in lesser chemical applications / processes where the priority is for bulk fluid distribution as opposed to technically specialised applications.

It is available in a range of sizes and pressure ratings to suit water treatment, utilities, mining, irrigation and rural applications.

Size Range

16 - 2000mm

Operating Temperature

-50 – 60°C

Jointing Technology

Butt, socket and electro fusion, infrared and compression

Pressure Rating

10 to 25 bar

A Sample Of Our Range

HDPE 90 degree Multi bend Long Spigot Fitting

PE 90˚ Multi-Bend

PE Stub Flange

image of Agru Agruline PE socket fusion 90 degree elbow on a white background

PE 90˚ Elbow

Image of Agru Agruline PE100-RC Threaded adaptor socket fusion x female BSP thread on a white background

PE Threaded Adaptor Fitting

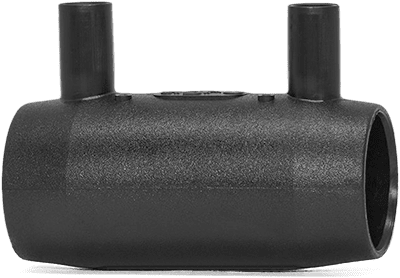

Image of an Agru Agruline PE Electrofusion Coupling / Coupler on a white background

PE Electrofusion Coupler

See Our Full Range

For the full range available from Fusion download the Fusion Product Guide or Contact us.

Get the Product Guide

Benefits of HDPE

Durable and mechanically strong.
Cost effective.
Flexibility compared to steel and equivalent cement products.
Range of pressure ratings available.
Broad range of jointing methods to suit specific applications.

Colour coding to AS/NZ standards available for ease of identification.
Easy to use and install.
UV stabilised.
CO-EX white option is also available to reduce heat soak.

Fusion: Supply, fabricate and install with HDPE

Fusion has the capability to not only supply HDPE pipe and fittings for your next project, but also fabricate and install.

HDPE Multibends

Multibends provide top flexibility: they can be used as long-spigot or, when cut, as a short spigot fitting. They’re suitable for butt and electro-fusion welding. Multibends are easier to install than standard elbows, have a lower resistance coefficient and less pressure loss than long spigot elbows. Find the complete range of Multibend fittings in the Fusion Product Guide.

PE100 Electrofusion Fittings

Perfect For:

Ship Building / Biogas / Offshore / Coal Seam Gas

Gas Utilities + Transport Lines + Distribution Lines

Maintenance & Repair Building Technology

House Connections & Service Lines

What is PE Electrofusion?

Electrofusion is a process of welding polyethylene (PE) piping systems. EF fittings are embedded with copper coil heating elements. Using an electrical input from a specialised EF welding machine; welding—with a little preparation—is essentially plug-and-play.

EF welding machines are very small and lightweight compared to almost all butt fusion welding machines (especially for larger diameter pipe), making joins easier to accomplish with lower transportation costs.

Benefits

Weld Traceability.
Extra Safe Installation.
Suitable for above-ground and buried systems.
Lower installation costs with much smaller, agile and lighter welding equipment.
One machine is suitable for a variety of fitting / pipe diameters (unlike butt Fusion machines).
EF fittings arrive in sealed packaging to protect from contamination and ensure quality, lasting welds.
A barcode system auto-fills correct weld times directly into EF weld machines, reducing human error when making joins.

Site Services & Installation

Fusion provides a total solution for supply, fabrication and installation of plastic piping system products.

Fusion has supplied and installed Electrofusion products on many small and large scale projects in metropolitan areas and rural Australia. Contact us today to find out more about how we can help you with your next project.

FAQ

What are the applications for HDPE / PE100?

HDPE / PE100 suits a wide range of applications including:

Waste Water Pipes

Gas / Water Distribution Networks
Water Pipelines
Irrigation Pipelines
Waste Water Pipes
Plumbing Pipes

Where has Fusion Supplied / Installed HDPE / PE100?

Some notable supply / install projects:

Many mining projects throughout Australia.
Civil infrastructure projects in north-west, Western Australia.
The Wheatstone Project, Western Australia.
Water authority plant construction in Adelaide, South Australia.
Desalination plant construction in south-west, Western Australia.
Water authority mains replacements throughout Perth, Western Australia.
